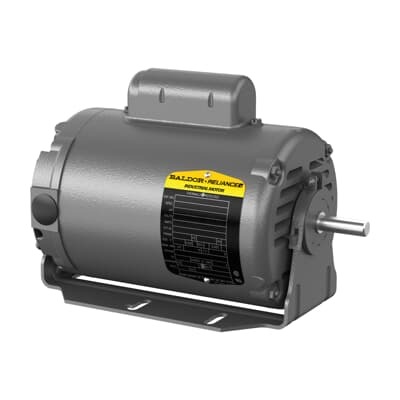

ABB RL1209A Fan and Blower - 0.5HP, 110V, OPEN
Part Number: 7BRL1209A
Quick Summary
RL1209A Fan and Blower by ABB is a compact, 0.5 HP, single-phase motor designed for industrial ventilation, cooling, and air-handling in equipment and process environments. This open-enclosure unit with resilient mounting reduces vibration and simplifies installation in crowded panel rooms and ducted systems. Engineers often contend with mismatched voltages, lengthy lead times, and unclear regulatory alignment; this model mitigates those pains with support for 110/115/220/230 V and 50/60 Hz operation, plus CSA and UR listings and RoHS compliance. The combination of standard frame size 48, robust bearings, and NEMA design considerations delivers predictable maintenance costs, faster procurement, and easier retrofits for HVAC, process cooling, and machinery cooling applications.
Product Information
Extended Description
7BRL1209A ABB: Fan and Blower 0.5 Hp 110 V (RL1209A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,2850//3450RPM,1PH,50//60HZ,48,
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
RL1209A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYK014: Dimension Sheet
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
48
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
RL1209A
Gross Volume
1400.25 inÂł
Gross Weight
27 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.5HP,2850//3450RPM,1PH,50//60HZ,48,3420L
Made To Order
No
Medium Description
Fan and Blower, 0.5 HP, 3000//3600 RPM, Frame Size 48, ResilientMount Mounting, 1 Phase, OPEN Enclosure, 110/220//115/230 V, 50//60
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
48
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
69 %
Product Name
Fan and Blower
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
27 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.6 A | 3.3 A | 6 A | 3 A
Rated Efficiency
74 %
Rated Speed
2850 r/min | 3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.5 in
Short Description
0.5 HP, 3000//3600 RPM, Frame Size 48, ResilientMount, 1 PH, OPEN, 110/220//115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3000 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
110 V | 115 V | 220 V | 230 V
Feature → Business Impact → Application: Voltage and frequency compatibility across 110/115/220/230 V with 50/60 Hz support reduces wiring errors and stock variety, accelerating installation and changeovers in global facilities. Application: Industrial ventilation and equipment cooling where global voltage profiles vary. Feature → Business Impact → Application: Frame size 48 with OPEN enclosure and resilient mounting enables straightforward installation, easier service access, and reduced vibration, improving reliability in conveyors, blowers, and cabinet cooling. Application: Open-frame cooling applications in harsh plant environments. Feature → Business Impact → Application: Direct On Line starting and 1-phase, 2-pole design delivers simple control, fewer soft-start requirements, and lower upfront equipment costs. Application: HVAC fans and air movers in manufacturing floors. Feature → Business Impact → Application: Bearings (6203) and insulation class B extend service life in continuous duty, lowering maintenance frequency and total cost of ownership. Application: Continuous cooling fans and process-related blowers. Feature → Business Impact → Application: Efficiency (74%) and power factor (69%) reduce energy consumption and electrical demand, yielding measurable cost savings over life cycle. Application: Energy-efficient motor for large-scale ventilation. Feature → Business Impact → Application: Certifications (CSA | UR) and RoHS compliance ensure regulatory alignment and supplier risk reduction for audited facilities. Application: Compliant installations in regulated industries.
