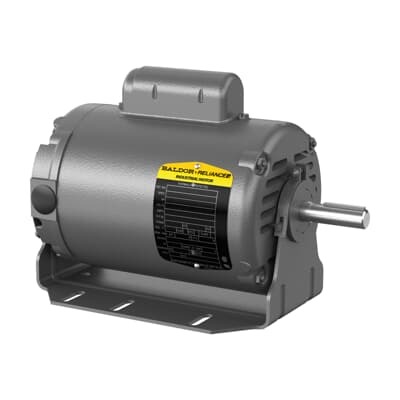

ABB RL1304A Fan and Blower - 0.5HP, 115V, OPEN ENCLOSURE
Part Number: 7BRL1304A
Quick Summary
The ABB RL1304A Fan and Blower is a compact, single‑phase cooling solution designed for control panels, enclosures, and compact machinery. It delivers reliable air movement at 0.5 HP with a 1725 rpm rating and supports 115/230 V operation. This unit addresses the pervasive challenge of enclosure overheating that leads to downtime and premature component wear. Built for 60 Hz environments and RoHS compliant, it carries CSA | UR certifications and a NEMA designation for added reliability and compliance. With a resilient-mount frame, open enclosure design, and Direct On Line starting, installation is straightforward and vibration is minimized. By boosting cooling efficiency, it helps extend equipment life and stabilize performance in demanding industrial settings.
Product Information
Extended Description
7BRL1304A ABB: Fan and Blower 0.5 Hp 115 V (RL1304A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,1PH,60HZ,56,3418L,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
RL1304A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYG036: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
RL1304A
Gross Volume
2110.969 inÂł
Gross Weight
26 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,1725RPM,1PH,60HZ,56,3418L,OPEN,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Fan and Blower, 0.5 HP, 1800 RPM, Frame Size 56, ResilientMount Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (RL1304A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
Fan and Blower
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
26 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
62 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56, ResilientMount, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
115 V | 230 V
Feature → The blower runs at 0.5 HP with a 1725 rpm, 60 Hz, single‑phase design, delivering strong, consistent airflow. Business Impact → Improves enclosure cooling efficiency, reduces heat-induced downtime, and supports reliable operation of control panels and compact machinery. Application → Ideal for electrical cabinets and 1-phase equipment in 115/230 V environments. Feature → Frame size 56 with resilient mounting and horizontal orientation (F1). Business Impact → Vibration damping and straightforward installation, lowering mounting noise and wear. Application → Suitable for lightweight enclosures and panel-mounted configurations in industrial setups. Feature → Open enclosure and Direct On Line starting. Business Impact → Simplifies integration in open installations, enables immediate start-up, and minimizes start-up surge management. Application → Control panels requiring quick, scalable cooling with minimal wiring complexity. Feature → 6203 ball bearings, Regreasable lubrication, and a shaft diameter of 0.63 in. Business Impact → Longer bearing life, easier maintenance, and reduced total cost of ownership. Application → High-duty ambient environments where dependable shaft integrity matters. Feature → Efficiency 62% and Power Factor 0.62 with RoHS compliance and CSA | UR certifications. Business Impact → Lower energy waste, regulatory assurance, and easier vendor qualification. Application → Industrial environments demanding regulatory conformity and reliable performance. Feature → Weight 26 lb, net dimensions (approx. 16.5 in L, 11.125 in H, 11.5 in W). Business Impact → Compact footprint enables flexible integration into space-constrained panels and machines. Application → Small‑to‑mid sized equipment where space is at a premium.
