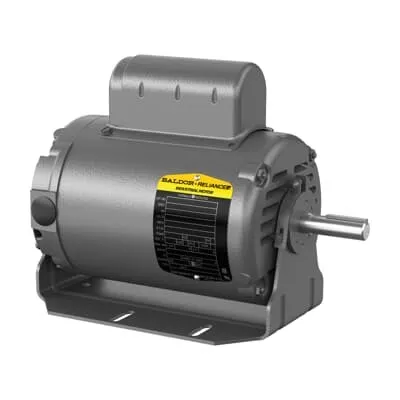

ABB RL1307A Fan and Blower - 0.75 HP, 60 Hz, CSA/UR
Part Number: 7BRL1307A
Quick Summary
ABB RL1307A is a compact, single-phase fan and blower rated at 0.75 HP for reliable cooling in industrial equipment and control panels. This unit is designed for 115 V operation with a 1725 RPM speed in a frame size 56, featuring a resilient mount and OPEN enclosure for versatile installation. End users frequently struggle with mismatched voltages, awkward mounting, and frequent downtime; RL1307A addresses these issues with direct-on-line start capability and a robust 1PH, 60 Hz configuration. It carries RoHS compliance and CSA/UR certification, aligning with critical safety and environmental standards. The combination of dependable airflow, standard stock at multiple warehouses, and straightforward serviceability delivers tangible business value by reducing lead times and maintenance complexity while supporting consistent cooling performance across systems.
Product Information
Extended Description
7BRL1307A ABB: Fan and Blower 0.75 Hp 115 V (RL1307A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56,3428L,OPE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
RL1307A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYG084: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
RL1307A
Gross Volume
3496.049 in³
Gross Weight
36 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,1725RPM,1PH,60HZ,56,3428L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Fan and Blower, 0.75 HP, 1800 RPM, Frame Size 56, ResilientMount Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (RL1307A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
68 %
Product Name
Fan and Blower
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
36 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
10.2 A | 5.1 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B34G084W169G2
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56, ResilientMount, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The RL1307A delivers 0.75 HP of cooling force in a compact 56-frame motor, enabling higher-density enclosures without compromising airflow. This translates into lower operating temperatures, improved motor efficiency, and reduced risk of thermal-related downtime in automated machinery. In practice, the unit supports reliable cooling for CNC controls, robotics, and HVAC subsystems where space is at a premium and airflow must be predictable. Feature → Business Impact → Application: With 115 V / 230 V capability and a single-phase 60 Hz supply, the RL1307A accommodates regional power variations and simplifies procurement across international facilities, minimizing wiring complexity and ensuring quick integration in global plants. Feature → Business Impact → Application: Resilient mounting and OPEN enclosure simplify installation and vibration damping, reducing vibration-induced noise and wear while enabling easier service access during routine maintenance in manufacturing lines. Feature → Business Impact → Application: Direct On Line start and a rated 1725 RPM offer immediate airflow when line power is applied, supporting cold-start efficiency for equipment that experiences intermittent cooling demands in packaging, materials handling, and process automation. Feature → Business Impact → Application: RoHS compliance, CSA/UR certification, and NEMA-aligned design provide regulatory assurance and traceability for systems operating under strict safety and environmental guidelines, enhancing supplier qualification and asset reliability. Feature → Business Impact → Application: Lubrication is Regreasable, shaft bearings are 6203 ball type, and the unit includes a 0.63 in shaft diameter, which together extend service intervals and reduce maintenance costs for continued performance in continuous-duty applications. Feature → Business Impact → Application: The unit’s dimensions (19.375 in L × 13.75 in W × 13.123 in H) and weight (36 lb) support straightforward retrofits into existing layouts and racks, easing installation planning and inventory planning for spare parts in critical cooling paths.
Get a Quick Quote for a ABB 7BRL1307A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BRL1307A?
Enquire Now
FAQs
The RL1307A operates at 115 V or 230 V with a 1-phase, 60 Hz supply, delivering 1725 rpm. It uses a frame size 56 and is designed for horizontal mounting with a resilient base. The Direct On Line starting method simplifies wiring and reduces startup components, while the OPEN enclosure accommodates straightforward service access in compact equipment and control panels.
Key specs include 0.75 HP, 1725 r/min speed, 60 Hz operation, 1 phase, frame size 56, 13.75 in width, 13.123 in height, and 19.375 in length. The unit weighs 36 lb and has a shaft diameter of 0.63 in. Rated current is 10.2 A (nominal), with Regreasable lubrication and a NEMA-aligned design for reliability in continuous-duty cooling.
The RL1307A is RoHS compliant and certified by CSA and UR. It aligns with NEMA design standards and offers an open enclosure suitable for general-purpose cooling. These certifications support regulatory compliance, supplier qualification, and safer integration into electrical equipment across North American and international facilities.
This blower is ideal for control panels, automation equipment cooling, electronic enclosures, and light HVAC duties where space is constrained. Its 0.75 HP output and 1725 rpm airflow provide reliable cooling for motors and drives in manufacturing lines, robotics, and packaging systems, particularly where easy mounting and quick installation are priorities.
The RL1307A uses Regreasable lubrication and standard ball bearings (6203) to extend service intervals. Warranty terms indicate a return policy for warranty-related issues, and the product is designed for durable operation with minimal downtime. For maintenance, inspect bearing condition and lubrication schedule to sustain peak airflow and prevent overheating in continuous-duty applications.
