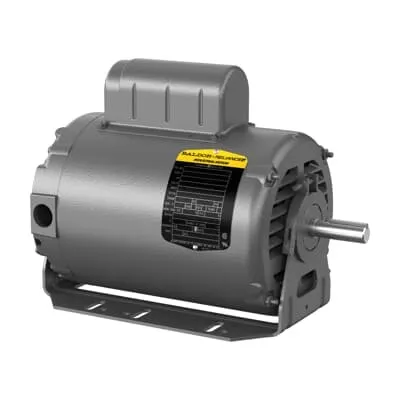

ABB 7BRL1310A Fan and Blower - CSA UR
Part Number: 7BRL1310A
Quick Summary
ABB 7BRL1310A Fan and Blower is a compact, 1 HP single‑phase blower designed for industrial ventilation, cooling, and air handling. It delivers dependable airflow in open-frame configurations where space is at a premium. This design directly addresses common challenges such as space constraints, vibration, and compatibility with standard 115/230 V power supplies. The unit carries CSA and UR certifications and aligns with recognized NEMA design guidelines for reliable operation in open enclosures. With a resilient-mount base and a robust bearer system, it offers long service life in demanding environments. For procurement and maintenance planning, the model’s stock availability across warehouses supports faster, more predictable uptime and project timelines.
Product Information
Extended Description
7BRL1310A ABB: Fan and Blower 1 Hp 115 V (RL1310A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1725RPM,1PH,60HZ,56H,3520L,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
RL1310A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
N
Dimension Diagram
35LYF391: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
RL1310A
Gross Volume
2110.969 inÂł
Gross Weight
34 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1725RPM,1PH,60HZ,56H,3520L,OPEN,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Fan and Blower, 1 HP, 1800 RPM, Frame Size 56H, ResilientMount Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (RL1310A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
70 %
Product Name
Fan and Blower
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
34 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56H, ResilientMount, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 1 HP output combined with 1725 r/min at 60 Hz in a 115/230 V, single-phase configuration standardizes power, reduces wiring complexity, and enables consistent airflow in mid‑sized ventilation jobs. This translates to lower installation risk and faster commissioning in HVAC ductwork and process cooling systems. Feature → Business Impact → Application: Direct On Line starting minimizes drive components and protection schemes, boosting system reliability and reducing maintenance downtime—ideal for open-frame blowers in conveyor cooling zones and enclosure ventilation. Feature → Business Impact → Application: Frame size 56H with a resilient mount and horizontal orientation simplifies installation and dampens vibration, accommodating retrofit projects in legacy equipment and new builds with limited space. Feature → Business Impact → Application: Durable steel frame, 6203 ball bearings, and regreasable lubrication extend service life, lowering maintenance costs in harsh plant environments. Feature → Business Impact → Application: CSA and UR certifications plus NEMA design compatibility ensure regulatory compliance and predictable performance, supporting audits and equipment upgrades in manufacturing settings. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time delivers rapid procurement for urgent replacements, minimizing downtime in critical process lines and HVAC installations.
