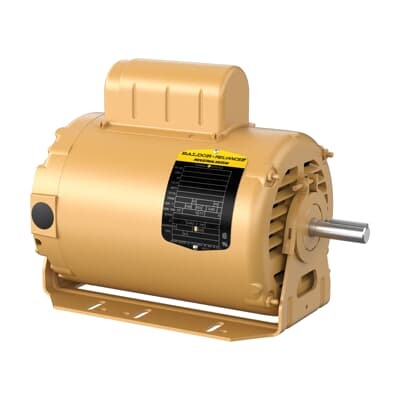

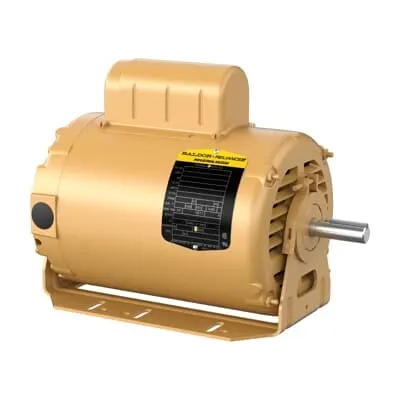

ABB RL1310A277 Fan and Blower - 1HP 277V, CSA/UR Certified
Part Number: 7BRL1310A277
Quick Summary
The ABB RL1310A277 fan and blower delivers robust cooling for industrial equipment and open-enclosure systems. In demanding environments, engineers face enclosure heat buildup, energy waste, and unreliable startup under varying loads. This unit carries CSA and UR certifications, RoHS compliance, and a NEMA design classification, providing regulatory confidence and safety. As a 1-phase, 277V, 60 Hz motor with an open enclosure and resilient mounting, it enables plug-and-play installation and predictable maintenance intervals, helping facilities improve uptime and reduce total cost of ownership. Its 1 HP rating and 1725 rpm speed align with common ventilation and cooling duties in manufacturing, data centers, and process lines, supporting straightforward replacement of aging 56 frame motors.
Product Information
Extended Description
7BRL1310A277 ABB: Fan and Blower 1 Hp 277 V (RL1310A277)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1725RPM,1PH,60HZ,56H,3526L,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
RL1310A277
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE410: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
RL1310A277
Gross Volume
2110.969 in³
Gross Weight
42 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1725RPM,1PH,60HZ,56H,3526L,OPEN,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Fan and Blower, 1 HP, 1800 RPM, Frame Size 5656H, ResilientMount Mounting, 1 Phase, OPEN Enclosure, 277 V, 60 Hz (RL1310A277)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56/56H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Product Name
Fan and Blower
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
42 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.4 A
Rated Efficiency
70 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 5656H, ResilientMount, 1 PH, OPEN, 277 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
H
Voltage Rating
277 V
Feature: 1 HP, 1725 rpm, 277 V single-phase operation → Business Impact: Delivers reliable, steady airflow to prevent enclosure hotspots and thermal drift; reduces downtime due to overheating. Application: Suitable for enclosure cooling in industrial controls and process equipment. Feature: Open enclosure with frame 56/56H and resilient mounting → Business Impact: Eases installation, minimizes vibration transfer, and simplifies retrofits. Application: Horizontal or vertical mounting on compact control cabinets and ventilation housings. Feature: Direct On Line starting, 1-phase, 60 Hz → Business Impact: Fast, simple startup with minimal control complexity; lowers installation costs and wiring requirements. Application: Retrofit projects and new builds in manufacturing lines. Feature: RoHS compliant, NEMA design L, Insulation Class F → Business Impact: Regulatory compliance and improved reliability in demanding conditions; extended service life under moderate ambient temperatures. Application: Industrial environments with standard safety and performance standards. Feature: Stocked across multiple warehouses, 0 day lead time → Business Impact: Reduces project delays and unplanned downtime; improves sourcing resilience. Application: Just-in-time maintenance and urgent replacements across global facilities.
Get a Quick Quote for a ABB 7BRL1310A277
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BRL1310A277?
Enquire Now
FAQs
Yes. The RL1310A277 is designed around frame size 56/56H with a resilient base, enabling straightforward horizontal or vertical mounting. It supports direct-on-line starting and 277 V operation, making it a practical replacement for older 56 frame motors in control panels and ventilation housings, while maintaining alignment with NEMA design standards.
Key specs include 1 phase, 277 V, 60 Hz operation, 1725 rpm synchronous speed, and a rated current of 5.4 A. The motor provides 1 HP output with an insulation class of F and an efficiency of about 70%. These figures support predictable fan performance and stable enclosure cooling under continuous duty.
Ideal for industrial controls, process equipment ventilation, and open-enclosure cooling tasks. Its 1 HP rating and 1725 rpm speed suit moderate airflow requirements in manufacturing lines, data centers, and HVAC housings, where compact form factor and resilient mounting simplify retrofits and new installs alike.
The RL1310A277 carries CSA/UR certification and RoHS compliance, with a NEMA design classification (L). These credentials help meet safety, environmental, and industry-standard requirements for heavy-duty equipment in North American facilities.
With regreasable bearings and a robust 56/56H frame, maintenance intervals can be extended when properly serviced. The motor is stocked at multiple warehouses with 0 day lead time, reducing downtime and improving return on investment by enabling rapid replacements and predictable inventory planning.
