ABB 7BRM3007A Fan and Blower - 3PH 60Hz CSA/UR
Part Number: 7BRM3007A
Quick Summary

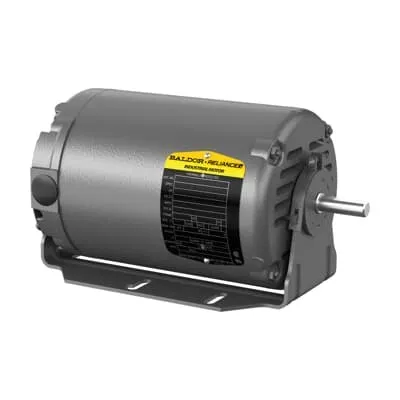

7BRM3007A Fan and Blower delivers compact cooling for industrial equipment in open-enclosure installations. Engineers often battle heat buildup in tight spaces, where downtime and component wear can erode productivity. This ABB unit addresses those challenges with a resilient mount, a robust 48 frame, and a straightforward 3-phase, 60 Hz design that plugs into standard power networks. The configuration aligns with key certifications and standards such as NEMA Design Code B, RoHS compliance, and CSA/UR listing, providing regulatory confidence across North American facilities. By delivering consistent airflow at 1725 rpm with 0.33 HP, it supports reliable cooling while reducing energy waste and maintenance costs. Its 208-230/460 V rating also fits a wide range of industrial systems, boosting procurement flexibility.
Product Information
Extended Description
7BRM3007A ABB: Fan and Blower 0.33 Hp 208 V (RM3007A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1725RPM,3PH,60HZ,48,3413M,OPE
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
RM3007A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYK015: Dimension Sheet
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
RM3007A
Gross Volume
2110.969 inÂł
Gross Weight
21 lb
Horsepower Rating UL/CSA
0.330 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.33HP,1725RPM,3PH,60HZ,48,3413M,OPEN,F1
Made To Order
No
Medium Description
Fan and Blower, 0.33 HP, 1800 RPM, Frame Size 48, ResilientMount Mounting, 3 Phase, OPEN Enclosure, 208-230/460 V, 60 Hz (RM3007A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
48
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
57 %
Product Name
Fan and Blower
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
21 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.8 A | 1.6 A | 0.8 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.5 in
Short Description
0.33 HP, 1800 RPM, Frame Size 48, ResilientMount, 3 PH, OPEN, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
208 V | 230 V | 460 V
Feature → 3-phase, 60 Hz operation with a universal 208-230/460 V rating and frame size 48. Business Impact → Simplified electrical compatibility and faster installation across mixed fleet environments, reducing integration time and panel space. Application → Ideal for open-enclosure cooling in equipment like pumps, drives, and compact machinery that require reliable, compact airflow. Feature → Resilient mounting and open enclosure design. Business Impact → Vibration damping and versatile mounting options translate to longer motor life and easier retrofits in retrofit-heavy facilities. Application → Suitable for horizontal mounting in space-constrained panels and industrial cabinets, where serviceability matters. Feature → 0.33 HP, 1725 RPM with 1.25 service factor and 68% efficiency. Business Impact → Efficient cooling without oversizing, enabling lower energy bills and improved system reliability. Application → Continuous-duty cooling for steady-state operations in manufacturing lines and process equipment. Feature → Robust bearings (6203, Ball) and direct-on-line starting. Business Impact → Lower maintenance due to proven bearing life and immediate torque at start, reducing startup time and spare parts usage. Application → Requires minimal drive intelligence, suitable for plug-and-play installations in standard control panels. Feature → Compliance and standards (RoHS, NEMA Design Code B, CSA/UR). Business Impact → Regulatory alignment reduces risk, accelerates audit readiness, and supports sustainability goals. Application → Broadly applicable across North American facilities with stringent regulatory requirements. Feature → Stock availability and quick lead times (0 day lead time, multiple warehouses). Business Impact → Minimal downtime and faster project completion, supporting just-in-time procurement strategies. Application → Especially valuable for service contracts and OEMs needing rapid replenishment.
Get a Quick Quote for a ABB 7BRM3007A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BRM3007A?
Enquire Now
FAQs
Yes. The unit is designed for 208-230/460 V, 3-phase operation and an OPEN enclosure with a 48-frame base. It also features a resilient mount and Direct On Line starting for straightforward integration into standard control panels.
The 7BRM3007A delivers approximately 68% efficiency with a service factor of 1.25, rated at 0.33 HP and 1725 RPM. These specs support reliable continuous operation while keeping energy use favorable in cooling applications.
Best suited for open-enclosure cooling in machines such as pumps, drives, conveyors, and compact industrial equipment. The 48 frame, horizontal mounting, and 3-phase 60 Hz operation make it a versatile choice for OEMs and maintenance teams.
This unit is RoHS compliant and CSA/UR listed, with NEMA Design Code B. These certifications support regulatory compliance and safety requirements typical in North American facilities.
With a robust steel frame, durable bearings, and readily available stock across warehouses, maintenance is minimized and downtime is reduced. Quick lead times help protect project schedules and improve total cost of ownership.
