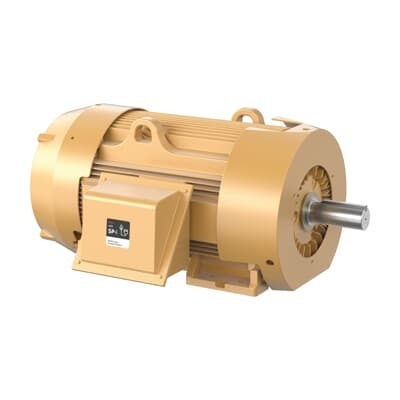

ABB 7BSPM4407TR-4 General Purpose Motor - 200HP TEFC
Part Number: 7BSPM4407TR-4
Quick Summary
ABB 7BSPM4407TR-4 General Purpose Motor is designed to power heavy-duty industrial equipment in continuous operation. For engineers wrestling with downtime caused by unsuitable drives, this motor offers a reliable, standard-footprint solution that fits common systems. The unit meets NEMA Premium and IE4 efficiency benchmarks, with additional CE and UL-style safety certifications that support compliance across global plants. Stocked across multiple warehouses, it minimizes ordering delays, while the 447T frame and 3-phase 460 V rating simplify integration with existing electrical infrastructure. This combination delivers lower lifecycle costs, improved uptime, and predictable performance for conveyors, pumps, and process equipment.
Product Information
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
200HP,1790RPM,3PH,60HZ,447T,A44124M
Ambient Temperature
40 °C
Bearing
110RU02M30X, Roller
Bearing NDE
90BC03J30X
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
SPM4407TR-4
Certification Agency
CCSAUSEEV | CURUSEEV | NEMA_PREMIUM
Country of Origin
United States (US)
Customs Tariff Number
85015381
Drive End Flange Type
Standard
Efficiency Level
Super Premium (NEMA 12-23) | IE4 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D, Class II, Group F & G
Frame Material
Iron
Frame Size
Undefined
Global Commercial Alias
SPM4407TR-4
Gross Weight
3145 lb
Insulation Class
H
Invoice Description
200HP,1790RPM,3PH,60HZ,447T,A44124M,TEFC
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
200 Hp
Power Factor
87 %
Product Name
SP4 GP 3PH Enclosed
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
3145 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
224 A
Rated Efficiency
96.50 %
Rated Speed
1790 r/min
Replaced Part Number (OLD)
7BA44-5011-6734
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
3.38 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature → Business Impact → Application: 200 HP output at 1790 r/min provides ample torque for heavy conveyors and high-load pumps, enabling consistent throughput while reducing motor cycling and wear. Application: heavy material handling lines and process pumps benefit from reliable, peak-ready power delivery across shift regimes. Feature → Business Impact → Application: TEFC enclosure protects internal windings from dust, moisture, and debris, lowering maintenance intervals and extending bearing life. Application: dusty or humid industrial environments such as mining conveyors or wash-down stations gain longer service intervals and reduced downtime. Feature → Business Impact → Application: IE4/NEMA Premium efficiency designation lowers energy consumption, cutting operating costs and cooling demand in long-running applications. Application: continuous-duty fans and pumps in HVAC or process cooling setups see meaningful energy savings and cooler motor temperatures. Feature → Business Impact → Application: 447T frame with 3.38 in shaft diameter and foot-mounted base simplifies retrofits and new installs, reducing mechanical integration risk. Application: retrofits into existing footprint footprints and new line setups in packaging, material handling, and processing lines. Feature → Business Impact → Application: Direct-on-line starting and 1.15 service factor support robust startup under varying loads, improving startup reliability in conveyors, small pumps, and mixers. Application: standard industrial drives where utilities demand immediate torque without soft-start hardware. Feature → Business Impact → Application: Broad stocking (USA and China warehouses) with 0-day lead time enhances project planning, procurement cycles, and maintenance scheduling. Application: OEMs and end-users benefit from predictable delivery and minimal project delays, especially during peak production.
Get a Quick Quote for a ABB 7BSPM4407TR-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BSPM4407TR-4?
Enquire Now
FAQs
This motor is foot-mounted with a 447T frame and is designed for 3-phase, 460 V power. It supports Direct On Line starting and is suitable for continuous duty in standard 60 Hz industrial electrical systems, aligning with common plant footprints and installations.
The motor is listed with NEMA Premium efficiency and IE4 performance. It also carries safety and compliance indicators associated with EN/CE-style certifications and recognized agencies noted in the product data, offering regulatory alignment for US and international facilities.
Yes. With continuous-duty ratings, a service factor of 1.15, and 200 HP output, it provides reliable torque and steady operation for conveyors, pumps, and similar process equipment, helping minimize unscheduled downtime and maintain throughput.
The motor is stocked at multiple warehouses (US and China) with a stated lead time of 0 days, enabling rapid deployment and easier project scheduling. This visibility supports just-in-time procurement and reduces risk in critical production lines.
Plan for a horizontal, foot-mounted installation on a 447T frame with a 3.38 in shaft. Ensure alignment with coupling and driven equipment, provide adequate cooling, and account for direct-on-line start in control schemes to maximize reliability and minimize mechanical stress.
