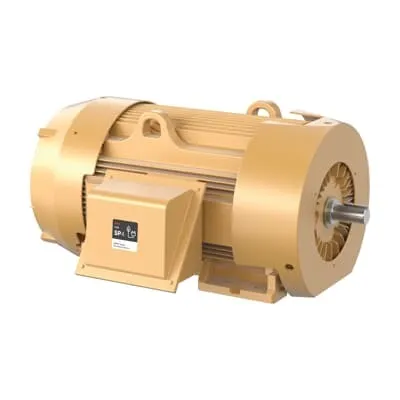

ABB 7BSPM4407TS-4 Motor - NEMA Premium IE4 TEFC
Part Number: 7BSPM4407TS-4
Quick Summary
ABB 7BSPM4407TS-4 is a general purpose motor that delivers reliable torque for heavy-duty conveyors and pumps. Engineers often struggle with balancing efficiency and durability in demanding environments. This model carries NEMA Premium IE4 efficiency, CE compliance, and CURUSEEV/CCSAUSA certifications, enabling both U.S. and international deployments. With 460 V three-phase operation and a robust TEFC enclosure, it slots into existing frames while lowering energy costs and maintenance downtime. For engineers evaluating total cost of ownership, the 200 HP rating translates to meaningful energy savings over lifetime. And the motor’s 1.15 service factor and 2.38 inch shaft diameter ensure rugged performance in line with standard mechanical interfaces.
Product Information
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
200HP,1790RPM,3PH,60HZ,449TS,A44124
Ambient Temperature
40 °C
Bearing
90BC03J30X, Ball
Bearing NDE
90BC03J30X
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
SPM4407TS-4
Certification Agency
CCSAUSEEV | CURUSEEV | NEMA_PREMIUM
Country of Origin
United States (US)
Customs Tariff Number
85015381
Drive End Flange Type
Standard
Efficiency Level
Super Premium (NEMA 12-23) | IE4 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D, Class II, Group F & G
Frame Material
Iron
Frame Size
Undefined
Global Commercial Alias
SPM4407TS-4
Gross Weight
3245 lb
Insulation Class
H
Invoice Description
200HP,1790RPM,3PH,60HZ,449TS,A44124M,TEF
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
449TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
200 Hp
Power Factor
87 %
Product Name
SP4 GP 3PH Enclosed
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
3245 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
224 A
Rated Efficiency
96.50 %
Rated Speed
1790 r/min
Replaced Part Number (OLD)
7BA44-5012-6734
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
The 200 HP output at 460 V three-phase power optimizes load handling while maintaining cooling efficiency through a TEFC enclosure. This translates into tangible energy savings and lower thermal stress on drive systems, particularly for conveyors, pumps, and fans in continuous-duty service. By employing insulation Class H and a ball bearing 90BC03J30X, the design resists heat, particulate ingress, and wear, extending service life in demanding plants. Foot-mounted 449TS frame with horizontal F1 mounting and a 2.38 in shaft diameter makes retrofits straightforward and compatible with common OEM equipment. Certifications such as NEMA Premium IE4 efficiency, CE compliance, and CURUSEEV provide regulatory confidence for OEMs and end users seeking energy efficiency and easy integration. Stocked at multiple warehouses (including US and China) with a 0 day lead time enables rapid procurement for urgent projects. Direct-on-line starting simplifies electrical design and reduces ancillary drive hardware.
Get a Quick Quote for a ABB 7BSPM4407TS-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BSPM4407TS-4?
Enquire Now
FAQs
This model uses a foot-mounted base with a 449TS frame and horizontal mounting orientation (F1). The shaft diameter is 2.38 inches, designed to align with standard OEM couplings and motor bases. Its footprint supports straightforward retrofit into existing conveyors, pumps, and machine tools, reducing required mechanical changes during installation.
Yes. The motor features a TEFC enclosure and Insulation Class H, enabling operation in elevated temperatures up to 40 °C. It also includes a service factor of 1.15 and a 3-phase 60 Hz design, making it well-suited for continuous-duty applications while maintaining reliability and manageable maintenance profiles in harsh plants.
The motor carries NEMA Premium IE4 efficiency, CE compliance, and CURUSEEV/CCSAUSA certifications. These indicate energy efficiency, safety, and regulatory compatibility for both US-based facilities and international deployments, simplifying OEM approvals, energy reporting, and cross-border sourcing.
The motor is configured for 460 V, 3-phase operation with Direct-On-Line starting. It has a rated current of 224 A and a rated speed of 1790 r/min. With a 60 Hz frequency and TEFC enclosure, it integrates into standard electrical panels and drive systems without needing soft-start or special wiring beyond typical three-phase setups.
Lead time is listed as 0 days, and the product is stocked at multiple warehouses (including US and China). Minimum order quantity is 1 piece, which supports fast fulfillment for urgent OEM replacements or project starts, helping minimize downtime and ensure project continuity.
