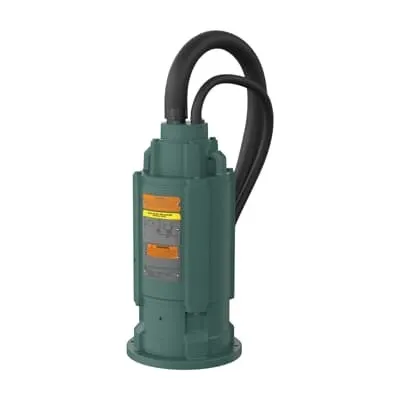

ABB SUM70154SM Submersible Pump Motor - Explosion-Proof
Part Number: 7BSUM70204SM
Quick Summary
ABB SUM70154SM Submersible Pump Motor powers compact, reliable pumping for water transfer and drainage in industrial settings. This 1.5 HP, 230 V, 3-phase motor is designed for tough environments where space is at a premium and downtime is costly. Engineers often struggle with sourcing a single unit that combines hazardous-area protection with robust reliability and easy procurement. The SUM70154SM leverages UL, CSA, and UR certifications and a TEXP explosion-proof enclosure to meet safety standards while delivering predictable performance. With a vertical, foot-mounted 180TY frame and a Direct-On-Line start, it fits standard motor control architectures and reduces integration time, enabling faster project completion and lower total cost of ownership.
Product Information
Extended Description
7BSUM70204SM ABB: Pump Motor 2 Hp 230 V (SUM70204SM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,180TY,XPNV,V1
Ambient Temperature
0 °C
Bearing
50BC02JPP30A, Ball
Bearing NDE
25BC02JPG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
SUM70204SM
Certification Agency
CCSA US | CSA | UL
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
066930-701
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEXP
Explosion Proof Group Class
Class I, Group C & D
Explosion Protection
Explosion-proof
Frame Material
Iron
Frame Size
180
Frequency (f)
60 Hz
Global Commercial Alias
SUM70204SM
Gross Volume
47040 inÂł
Gross Weight
230 lb
IDEA Granular Category Code (IGCC)
1326 >> Submersible motor AC
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,180TY,XPNV,V1
Made To Order
No
Medium Description
Submersible, 2 HP, 1800 RPM, Frame Size 180Ty, Standard Mounting, 3 Phase, TEXP Enclosure, 230/460 V, 60 Hz (SUM70204SM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
180TY
Mounting Orientation
Vertical
Mounting Position
V1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Product Name
Submersible
Product Net Depth / Length
32 in
Product Net Height
49 in
Product Net Weight
230 lb
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.4 A | 2.7 A
Rated Efficiency
73.50 %
Rated Speed
1730 r/min
Replaced Product ID (OLD)
7BS18-CWS0-0013
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 180Ty, Standard, 3 PH, TEXP, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101113
Voltage Rating
230 V
The 1.5 HP, 230 V, 3-phase rating delivers steady torque for reliable pump performance, reducing system variability in fluid handling. The SUM70154SM is designed for vertical, foot-mounted installation, enabling easy integration with existing pump packages and standard motor controls, while supporting 0-day lead times and multi-warehouse stocking to shorten procurement cycles. This translates to measurable uptime improvements in water transfer, drainage, and process pumping applications, reducing both scheduling risk and inverter or drive sizing costs. The explosion-proof TEXP enclosure, together with Class I, Group C & D protection and UL/CSA/UR certifications, provides compliant operation in hazardous environments such as chemical plants and mining, minimizing risk of costly retrofits and compliance delays. The 180TY frame, 0.88 in shaft diameter, and 4.4/2.2 A rated currents ensure compatibility with common pump couplings and power supplies, while the 70.50% efficiency and 1.15 service factor deliver meaningful life-cycle savings through lower energy use and extended motor life. These features are particularly valuable for continuous-duty, single-speed operations typical in industrial fluids handling, where reliability and maintainability directly influence total cost of ownership and project ROI.
