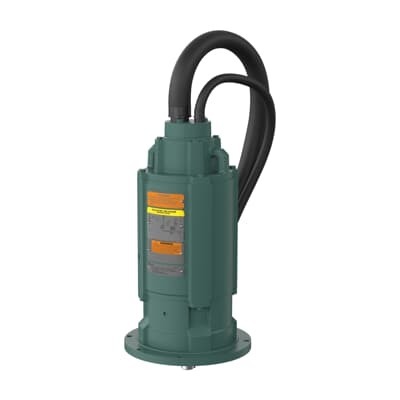

ABB SUM70506 Submersible Pump Motor - Explosion-Proof
Part Number: 7BSUM70506
Quick Summary
SUM70506 Submersible Pump Motor is a rugged 5 HP, 230 V, 3-phase unit designed for reliable submersible pumping in challenging environments. Engineers often contend with compact, explosion-protected motors that must perform in hazardous locations without sacrificing uptime. It carries UL/CSA and C-UR-US listings and features a TEXP enclosure, delivering safety and compliance in oil, gas, and chemical applications. Stocked at multiple warehouses with zero-day lead times, this ABB motor enables faster maintenance cycles, lower inventory risk, and predictable procurement for large-scale pumping projects. Designed around a 180TY frame and 60 Hz operation, it integrates with standard Baldor/Reliance ecosystems, reducing installation complexity. The result is measurable efficiency, safer operation, and a lower total cost of ownership for critical pump systems.
Product Information
Extended Description
7BSUM70506 ABB: Pump Motor 5 Hp 230 V (SUM70506)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1145RPM,3PH,60HZ,180TY,XPNV,V1
Ambient Temperature
0 °C
Bearing
50BC02JPP30A, Ball
Bearing NDE
25BC02JPG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
SUM70506
Certification Agency
C UR US | CCSA US | CSA | UL
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
066930-500
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEXP
Explosion Proof Group Class
Class I, Group C & D
Explosion Protection
Explosion-proof
Frame Material
Iron
Frame Size
180
Frequency (f)
60 Hz
Global Commercial Alias
SUM70506
Gross Weight
225 lb
IDEA Granular Category Code (IGCC)
1326 >> Submersible motor AC
Insulation Class
F
Invoice Description
5HP,1145RPM,3PH,60HZ,180TY,XPNV,V1
Made To Order
No
Medium Description
Submersible, 5 HP, 1200 RPM, Frame Size 180Ty, Standard Mounting, 3 Phase, TEXP Enclosure, 230/460 V, 60 Hz (SUM70506)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
180TY
Mounting Orientation
Vertical
Mounting Position
V1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Product Name
Submersible
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
225 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.4 A | 8.7 A
Rated Efficiency
80.70 %
Rated Speed
1150 r/min
Replaced Product ID (OLD)
7BS18-CWS0-0007
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Short Description
5 HP, 1200 RPM, Frame Size 180Ty, Standard, 3 PH, TEXP, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101113
Voltage Rating
230 V
Feature: Explosion-proof TE XP enclosure and Class I, Group C&D protection. Business Impact: Ensures safety compliance and reduces risk of hazardous-area incidents, supporting regulatory adherence in oil, gas, and chemical plants. Application: Submersible pumping in hazardous environments. Feature: 5 HP, 230 V, 60 Hz 3-phase configuration. Business Impact: Delivers robust hydraulic capacity with efficient power usage, minimizing energy costs over the life of the motor. Application: Industrial wastewater, sump pumps, and liquid transfer systems. Feature: Frame size 180Ty with 1.25 in shaft and foot-mount option. Business Impact: Simplifies integration with existing mounting footprints and drive assemblies, lowering installation time. Application: Vertical mounting in compact pump assemblies and OEM backplanes. Feature: Direct On Line starting and NEMA B design. Business Impact: Reduces control hardware needs and startup complexity while maintaining reliability in steady-duty operations. Application: Plant water systems and enclosed facilities where quick startup is essential. Feature: UL/CSA/C-UR-US certifications and 0 day lead time with multi-warehouse stocking. Business Impact: Improves procurement certainty and compliance, enabling faster uptime and on-site availability. Application: Maintenance planning, spare-parts strategy, and critical-path projects in chemical processing and utilities. Feature: Insulation Class F, 1150 r/min nominal speed, and 80.70% efficiency. Business Impact: Sustains performance under demanding thermal conditions and improves energy efficiency, reducing ongoing operating expenses. Application: Long-run pumping duty with consistent torque and heat management. Feature: Synchronous speed 1200 r/min and service factor 1.15. Business Impact: Predictable performance margins for variable loads and extended motor life under continuous operation. Application: High‑duty submersible pumps in flood control and process water systems. Feature: 230/460 V capability and 3-phase 60 Hz operation. Business Impact: Flexible integration with regional power standards, minimizing supply-chain constraints. Application: Global installations and cross-site projects requiring standardized motor platforms.
Get a Quick Quote for a ABB 7BSUM70506
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BSUM70506?
Enquire Now
FAQs
Yes. SUM70506 is designed for foot-mounted vertical installation with a 180Ty frame and V1 mounting position. The TE XP enclosure and Class I, Group C&D rating support safe operation in hazardous environments, while the NEMA B design aids in aligning with common installation practices. Ensure proper clearance and cooling as per standard motor installation guidelines for submersible, hazardous-area pumps.
SUM70506 delivers 5 HP at 230 V, 60 Hz, with a 3-phase configuration. It draws 17.4 A up to 8.7 A depending on load, and runs at a nominal speed of 1150 r/min with a synchronous speed of 1200 r/min. The motor features Direct On Line starting, insulation class F, and a service factor of 1.15, which translates to reliable startup and tolerance under peak loads in continuous-duty pumping.
Absolutely. The SUM70506 carries UL, CSA, and C-UR-US certifications and features a TE XP explosion-proof enclosure. It meets Class I, Group C&D requirements and adheres to NEMA design standards, offering validated safety and regulatory compliance for use in oil, gas, and chemical facilities.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses (for example EGAUT001EXPU, USABB014EXPU, GBINS001EXPU, SGIND004EXPU). This enables rapid procurement and minimizes downtime during maintenance or scale-up projects in industrial pumping systems.
Best suited for submersible pumping in hazardous environments such as wastewater and chemical processing, SUM70506 delivers reliable 5 HP power, explosion-proof protection, and fast availability. The combination of robust insulation, frame compatibility (180Ty), and direct-on-line starting reduces installation time, energy use, and total cost of ownership for critical pumping infrastructure.
