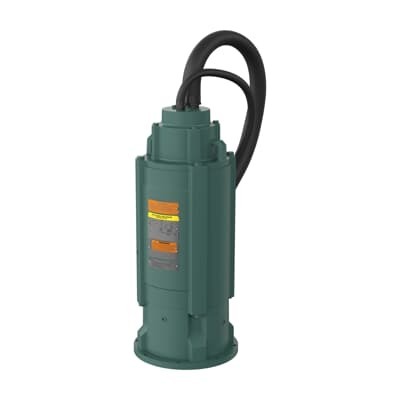

ABB SUM71504SM-4 Submersible Pump Motor - Class I Group C&D
Part Number: 7BSUM71504SM-4
Quick Summary
SUM71504SM-4 is a rugged submersible pump motor rated at 15 HP and 460 V, designed for continuous operation in demanding water-transfer applications. This ABB unit delivers reliable 1765 rpm at 60 Hz with a 3-phase, 4-pole configuration in an XPNV enclosure for enhanced protection in challenging environments. The design is suitable for vertical, foot-mounted installations with a 210TY frame, supporting a robust 1.15 service factor and a rated current of 38 A. Stock availability across multiple warehouses and a straightforward warranty return policy address common pain points like long lead times and uncertain coverage. This combination supports uptime, compliance, and lifecycle cost reduction for water-treatment and industrial pumping systems.
Product Information
Extended Description
7BSUM71504SM-4 ABB: Pump Motor 15 Hp 460 V (SUM71504SM-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,210TY,XPNV,V1
Ambient Temperature
0 °C
Bearing
60BC02JPP30A, Ball
Bearing NDE
30BC02JPG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
SUM71504SM-4
Certification Agency
CCSA US | CSA | UL
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
XPNV
Explosion Proof Group Class
Class I, Group C & D
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
SUM71504SM-4
Gross Volume
46080 inÂł
Gross Weight
381.001 lb
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,210TY,XPNV,V1
Made To Order
No
Medium Description
Submersible, 15 HP, 1800 RPM, Frame Size 210Ty, Standard Mounting, 3 Phase, XPNV Enclosure, 230/460 V, 60 Hz (SUM71504SM-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
210TY
Mounting Orientation
Vertical
Mounting Position
V1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Product Name
Submersible
Product Net Depth / Length
32 in
Product Net Height
48 in
Product Net Weight
381.001 lb
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
38 A | 19 A
Rated Efficiency
85.40 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7BS21-CWS0-0302
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Short Description
15 HP, 1800 RPM, Frame Size 210Ty, Standard, 3 PH, XPNV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Type of Duty
Continuous
Voltage Rating
460 V
SUM71504SM-4 delivers measurable value across the pump-motor lifecycle. The 15 HP motor, rated at 460 V and 60 Hz, runs at 1765 rpm, providing efficient, single-speed performance suitable for water-transfer and industrial pumping, while the 1.15 service factor ensures reliability under short-term overloads—reducing unplanned downtime. The vertical, foot-mounted 210TY frame enables straightforward installation in tight spaces and simplifies maintenance access, lowering installation time and labor costs. The XPNV enclosure and Class I, Group C&D explosion-proof design expand safe deployment possibilities in hazardous locations, boosting compliance for oil, gas, and chemical environments. Stocked at multiple warehouses and supported by a direct-on-line start, this asset minimizes lead times, improves procurement cycles, and lowers total cost of ownership through robust construction and regulatory-grade certifications. Real-world use includes water treatment, submersible wells, and municipal pumping systems.
Get a Quick Quote for a ABB 7BSUM71504SM-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BSUM71504SM-4?
Enquire Now
FAQs
The SUM71504SM-4 is designed for vertical, foot-mounted installation on a 210TY frame. Its compact footprint and direct-on-line starting simplify site prep and reduce assembly time. You should plan for standard foot mounting clearances and alignments, with appropriate coupling and sensor placements to monitor motor health. This configuration supports straightforward field servicing and minimizes downtime during routine maintenance or part replacements.
This is a 3-phase motor operating at 460 V and 60 Hz, delivering 15 HP with a rated speed of 1765 r/min. It features a 1.15 service factor, a shaft diameter of 1.25 in, and a rated current of 38 A. The insulation class is F, and starting is Direct On Line (DOL), which simplifies drive selection and ensures robust startup performance in pumping applications.
Yes. The unit includes an XPNV enclosure and is rated for Class I, Group C&D environments, aligning with regulatory expectations for explosive atmospheres. Certifications from CCSA US, CSA, and UL further support compliance in hazardous settings such as chemical processing or oil and gas facilities, enabling safer submersible pumping inside challenging plants.
Lead time is 0 day with active stock, and the product is stocked at multiple warehouses including US and international locations (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). This translates to faster order fulfillment, reduced waiting times for urgent projects, and smoother inventory planning for procurement teams handling large pumping systems.
Warranty terms require returning the product if covered under warranty, with a focus on timely RMA processing and on-site or remote diagnostics. Regular maintenance should emphasize bearing health (60BC02JPP30A), shaft integrity, and enclosure sealing (XPNV) checks. The 15 HP motor’s robust frame supports extended service intervals, while the stock availability minimizes downtime during parts replacement or inspections.
