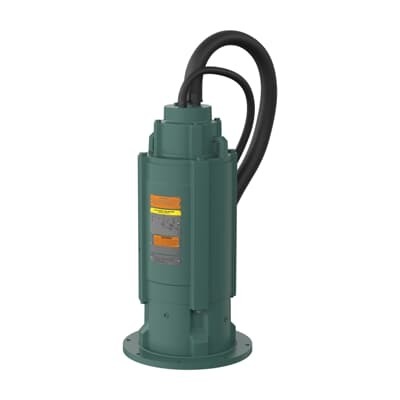

ABB SUM72004-4 Submersible Pump Motor - 20HP UL/CSA
Part Number: 7BSUM72004-4
Quick Summary
SUM72004-4 Submersible Pump Motor provides robust 20 HP pumping capability for industrial and municipal water applications. This premium unit addresses reliability and maintenance challenges common in demanding environments, delivering consistent performance under load. It carries UL, CSA, and C UR US certifications, along with a hazardous-area explosion-proof design and a TENV enclosure that withstands harsh conditions. With 460 V and 60 Hz operation, a 210TY frame, and Direct On Line start capability, it integrates smoothly with existing drive systems. The combination of energy efficiency (rated at 86.6%) and a compact, vertical footprint helps reduce total cost of ownership while maintaining safe, compliant operation across multiple stocked locations.
Product Information
Extended Description
7BSUM72004-4 ABB: Pump Motor 20 Hp 460 V (SUM72004-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1750RPM,3PH,60HZ,210TY,XPNV,V1
Ambient Temperature
0 °C
Bearing
60BC02JPP30A, Ball
Bearing NDE
30BC02JPG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
SUM72004-4
Certification Agency
C UR US | CCSA US | CSA | UL
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
066930-502
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Explosion Proof Group Class
Class I, Group C & D
Explosion Protection
Explosion-proof
Frame Material
Iron
Frame Size
210
Frequency (f)
60 Hz
Global Commercial Alias
SUM72004-4
Gross Volume
46777.5 inÂł
Gross Weight
415.001 lb
IDEA Granular Category Code (IGCC)
1326 >> Submersible motor AC
Insulation Class
F
Invoice Description
20HP,1750RPM,3PH,60HZ,210TY,XPNV,V1
Made To Order
No
Medium Description
Submersible, 20 HP, 1800 RPM, Frame Size 210Ty, Standard Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (SUM72004-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
210TY
Mounting Orientation
Vertical
Mounting Position
V1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Product Name
Submersible
Product Net Depth / Length
31.5 in
Product Net Height
49.5 in
Product Net Weight
415.001 lb
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27.09 A
Rated Efficiency
86.60 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7BS21-CWS0-0305
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.44 in
Short Description
20 HP, 1800 RPM, Frame Size 210Ty, Standard, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101113
Voltage Rating
460 V
Feature: Submersible design and 20 HP at 460V 60Hz. Business Impact: Enables submerged pumping with high reliability and reduced cavitation risk in water and wastewater applications. Application: Ideal for submersible pump installations in municipal and industrial facilities, where space constraints exist and maintenance windows are limited. Feature: 210TY frame, foot-mounted, vertical mounting (V1). Business Impact: Simplifies installation and alignment with existing equipment, minimizing retrofit costs and downtime. Application: Matches common Baldor-Reliance accessories and standard mounting patterns for quick deployment in new builds or upgrades. Feature: Direct On Line (DOL) starting. Business Impact: Delivers fast, straightforward startup with minimal control hardware, improving commissioning speed and reducing soft-start equipment needs. Application: Suitable for initial startups in primary pumping stations and gravity-fed systems. Feature: Enclosure and explosion protection (TENV, Class I, Group C & D). Business Impact: Enables safe operation in hazardous areas, enhancing worker safety and regulatory compliance. Application: Effective in chemical processing, oil/gas, and wastewater environments where explosive atmospheres may be present. Feature: Efficiency and electrical specs (86.6% efficiency, 27.09 A, 1740 r/min nominal). Business Impact: Lower energy consumption and cooler operation, supporting lower total cost of ownership and longer motor life. Application: High-load, continuous-duty pumping where run-time energy costs are a concern, with easy integration into 460V 60Hz three-phase systems.
