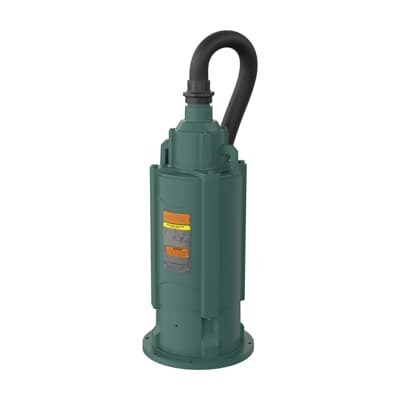

ABB SUM72504SM-4 Submersible Motor - XPNV Enclosure
Part Number: 7BSUM72504SM-4
Quick Summary
Submersible pump motor SUM72504SM-4 delivers 25 HP at 460 V for reliable, continuous pumping in challenging industrial applications. This ABB device is engineered to minimize downtime with readily available stock and zero-day lead times across multiple warehouses, helping you meet tight project timelines. For facilities facing hazardous locations or demanding outdoor conditions, the combination of a rugged XPNV enclosure and explosion-proof construction provides added protection and regulatory comfort. The motor carries UL and CSA US certifications and aligns with NEMA design standards, reinforcing safety and compatibility with your existing drives and controls. With 1760 r/min speed, 1.15 service factor, and robust 60 Hz performance, this solution supports energy-efficient operation and long service life, reducing lifecycle costs.
Product Information
Extended Description
7BSUM72504SM-4 ABB: Pump Motor 25 Hp 460 V (SUM72504SM-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1760RPM,3PH,60HZ,250TY,XPNV,V1
Ambient Temperature
0 °C
Bearing
60BC03JPP30A, Ball
Bearing NDE
40BC02JPG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
SUM72504SM-4
Certification Agency
CCSA US | CSA | UL
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
066930-028
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
XPNV
Explosion Proof Group Class
Class I, Group C & D
Explosion Protection
Explosion-proof
Frame Material
Iron
Frame Size
250
Frequency (f)
60 Hz
Global Commercial Alias
SUM72504SM-4
Gross Weight
340.194 kg
IDEA Granular Category Code (IGCC)
1326 >> Submersible motor AC
Insulation Class
F
Invoice Description
25HP,1760RPM,3PH,60HZ,250TY,XPNV,V1
Made To Order
No
Medium Description
Submersible, 25 HP, 1800 RPM, Frame Size 250Ty, Standard Mounting, 3 Phase, XPNV Enclosure, 230/460 V, 60 Hz (SUM72504SM-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
250TY
Mounting Orientation
Vertical
Mounting Position
V1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Product Name
Submersible
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
340.194 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A | 31 A
Rated Efficiency
88.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.44 in
Short Description
25 HP, 1800 RPM, Frame Size 250Ty, Standard, 3 PH, XPNV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101113
Voltage Rating
460 V
Feature: 25 HP, 460 V, 3-phase, 1760 r/min, 250TY frame enables direct-on-line starting and compact drive sizing, reducing switchgear costs and startup energy spikes. Business Impact: faster commissioning, lower capital expenditure, and predictable startup behavior. Application: ideal for continuous submersible pumping in water, wastewater, or mining dewatering. Feature: XPNV enclosure with explosion-proof construction (Class I, Group C & D) enhances safety and compliance in hazardous locations. Business Impact: reduces enclosure integrity risk and enables operation in chemical, oil & gas, and waste-water environments. Application: pumps in plants with stringent safety requirements. Feature: UL/CSA US certifications and adherence to NEMA design standards provide proven regulatory alignment. Business Impact: simplifies procurement, accelerates project approvals, and supports safe integration with controls and drives. Application: cross-industry deployment across US facilities. Feature: Stocked at multiple warehouses with zero-day lead time. Business Impact: accelerates project timelines, minimizes downtime, and lowers inventory carrying costs. Application: regional maintenance and plant-wide pump upgrades. Feature: 88.50% rated efficiency, 60 Hz operation, and service factor 1.15 combined with robust bearings (60BC03JPP30A) and a 1.44 in shaft diameter. Business Impact: energy savings, reliable operation under continuous duty, and extended motor life. Application: long-term reliability in demanding applications with steady loads.
Get a Quick Quote for a ABB 7BSUM72504SM-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BSUM72504SM-4?
Enquire Now
FAQs
The SUM72504SM-4 is designed for foot mounting with a vertical orientation and a 250TY frame. This configuration facilitates straightforward installation in pumps and drives assemblies, minimizes alignment issues during service, and reduces required mounting hardware. Its 3-phase, 460 V design also simplifies electrical integration with existing control panels and soft-start options, helping maintenance teams streamline commissioning and reduce field labor.
Key specifications include 460 V, 3-phase operation at 60 Hz, and a nominal speed of 1760 r/min. The motor delivers 88.50% efficiency with a rated current of 62 A running and 31 A startup, along with a service factor of 1.15. Insulation is class F, and it uses a ball bearing arrangement (60BC03JPP30A), contributing to reliable operation and longer service life in continuous-duty pumping.
Yes. The SUM72504SM-4 features an explosion-proof XPNV enclosure suitable for Class I, Group C & D environments. It carries UL and CSA US certifications and aligns with NEMA design standards, providing regulatory assurance for installations in chemical plants, wastewater facilities, and other potentially hazardous sites.
Lead time is 0 day, and the product is stocked across multiple warehouses (e.g., EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). This arrangement supports fast delivery, reduces project delays, and enables quick replacement or expansion of submersible pump systems when uptime is critical.
Direct-on-line starting reduces mechanical wear and improves startup reliability, while the 1.15 service factor and robust bearings support long life under continuous duty. High efficiency (88.5%) lowers energy costs, delivering favorable return on investment. With UL/CSA compliance and NEMA-aligned design, it also minimizes regulatory risk and simplifies ongoing maintenance scheduling.
