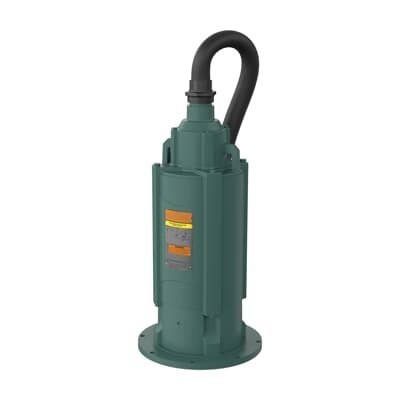

ABB SUM73004-4 Submersible Pump Motor - XPNV Enclosure
Part Number: 7BSUM73004-4
Quick Summary
Submersible pump motor SUM73004-4 provides reliable, high-torque pumping for demanding water handling and processing systems. Engineers often struggle with enclosure integrity, leakage risk, and uptime in harsh environments. This ABB design offers a rugged XPNV explosion-proof enclosure with UL, CSA, and CCSA US certifications, a 30 HP output, and 460 V three-phase operation at 60 Hz. Built for continuous duty and field reliability, it supports scalable, compliant pumping across industries. With a foot-mounted, vertical V1 orientation and a NEMA B profile, the motor pairs well with standard basins and piping, delivering predictable performance while reducing maintenance costs and spare parts inventory. In short, it merges industrial motor reliability with safety-compliant, install-ready design for immediate value.
Product Information
Extended Description
7BSUM73004-4 ABB: Pump Motor 30 Hp 460 V (SUM73004-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1760RPM,3PH,60HZ,250TY,XPNV,V1
Ambient Temperature
0 °C
Bearing
60BC03JPP30A, Ball
Bearing NDE
40BC02JPG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
SUM73004-4
Certification Agency
CCSA US | CSA | UL
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
066930-018
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
XPNV
Explosion Proof Group Class
Class I, Group C & D
Explosion Protection
Explosion-proof
Frame Material
Iron
Frame Size
250
Frequency (f)
60 Hz
Global Commercial Alias
SUM73004-4
Gross Volume
47616 inÂł
Gross Weight
239.043 kg
IDEA Granular Category Code (IGCC)
1326 >> Submersible motor AC
Insulation Class
F
Invoice Description
30HP,1760RPM,3PH,60HZ,250TY,XPNV,V1
Made To Order
No
Medium Description
Submersible, 30 HP, 1800 RPM, Frame Size 250Ty, Standard Mounting, 3 Phase, XPNV Enclosure, 230/460 V, 60 Hz (SUM73004-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
250TY
Mounting Orientation
Vertical
Mounting Position
V1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Product Name
Submersible
Product Net Depth / Length
32 in
Product Net Height
48 in
Product Net Weight
239.043 kg
Product Net Width
31 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68 A | 34 A
Rated Efficiency
88.70 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.75 in
Short Description
30 HP, 1800 RPM, Frame Size 250Ty, Standard, 3 PH, XPNV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101113
Voltage Rating
460 V
Explosion-proof protection and XPNV enclosure reduce risk in hazardous environments, supporting safe submersible pumping in chemical plants and wastewater facilities, while meeting UL/CSA/CCSA US certifications. This translates to safer operations and fewer compliance incidents, enabling workers to focus on throughput rather than safety concerns. The 30 HP, 460 V, 3-phase, 60 Hz power profile delivers robust head and flow for mid- to high-demand applications, improving system efficiency and enabling larger processes with existing utility infrastructure. Frame 250TY and foot-mounted, vertical V1 mounting simplify installation on standard basins and pump skids, reducing commissioning time and spare parts requirements. Direct On Line starting minimizes control complexity and peak electrical demand, lowering total cost of ownership and enabling fast fault identification during commissioning. Insulation Class F and Temperature Class T3C support reliable operation in warm plant rooms or outdoor pads, extending service life in challenging environments. With rated speed of 1750 r/min and synchronous 1800 r/min, performance remains stable under varying load conditions, essential for consistent process control in water treatment and submersible pumping. The 1.75 inch shaft diameter and 239 kg weight reflect a rugged, serviceable motor designed for long intervals between maintenance events, while a 3-phase, 60 Hz supply aligns with standard industrial power systems. Overall, this motor delivers energy efficiency of 88.70%, contributing to lower operating costs while meeting demanding duty classifications for continuous operation.
Get a Quick Quote for a ABB 7BSUM73004-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BSUM73004-4?
Enquire Now
FAQs
SUM73004-4 uses a 250TY frame with foot-mounted, vertical (V1) mounting. It is designed for standard basins and pump skids, aligning with a 1.75 in shaft and a 30 HP output for straightforward integration into existing submersible pumping systems.
The motor operates at 460 V, 3-phase, 60 Hz with a direct-on-line starting method. Rated current is 68 A (maximum) and 34 A (continuous), delivering 30 HP at 1750 r/min with a synchronous speed of 1800 r/min.
With an XPNV explosion-proof enclosure and Class I, Group C & D protection, this motor is ideal for hazardous industrial settings such as chemical processing, wastewater handling, and submersible pumping in potentially explosive atmospheres.
The SUM73004-4 carries UL and CSA certifications, including CCSA US, ensuring compliance for North American installations. Insulation Class F and Temperature Class T3C further support safe operation across varied ambient conditions.
The motor is stocked at multiple warehouses with 0 day lead time, enabling rapid deployment. Warranty terms indicate that products under warranty must be returned, and ongoing maintenance benefits from a robust, repairable Baldor-Reliance design with widely available spare parts.
