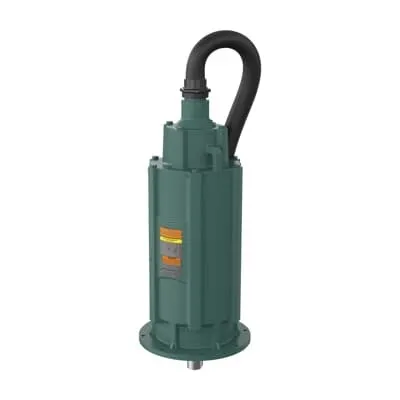

ABB SUM73006-4 Pump Motor - Submersible Explosion-Proof
Part Number: 7BSUM73006-4
Quick Summary
ABB SUM73006-4 Pump Motor is a 30 HP submersible pump motor used for reliable, continuous pumping in harsh industrial environments. Facility operators face hazardous-location compliance, long lead times, and maintenance costs that disrupt production. This unit ships with explosion-proof XPNV enclosure, Class I, Group C & D protection, and NEMA design features to meet safety and reliability requirements. With 60 Hz, 3-phase operation, a 320TY frame, and direct-on-line starting, it enables rapid installation and straightforward control integration, helping facilities reduce downtime and total cost of ownership for wastewater, chemical-processing, and mining pumping systems. This ABB motor model is backed by stock availability across multiple warehouses to shorten procurement cycles.
Product Information
Extended Description
7BSUM73006-4 ABB: Pump Motor 30 Hp 460 V (SUM73006-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,RPM,3PH,60HZ,320TY,XPNV,V1
Ambient Temperature
0 °C
Bearing
85BJ33J30X, Ball
Bearing NDE
50BC03JPG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
SUM73006-4
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
066930-018
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
XPNV
Explosion Proof Group Class
Class I, Group C & D
Explosion Protection
Explosion-proof
Frame Material
Iron
Frame Size
320
Frequency (f)
60 Hz
Global Commercial Alias
SUM73006-4
Gross Volume
104940 in³
Gross Weight
826 lb
IDEA Granular Category Code (IGCC)
1326 >> Submersible motor AC
Insulation Class
F
Invoice Description
30HP,RPM,3PH,60HZ,320TY,XPNV,V1
Made To Order
No
Medium Description
Submersible, 30 HP, 1200 RPM, Frame Size 320Ty, Standard Mounting, 3 Phase, XPNV Enclosure, 460 V, 60 Hz (SUM73006-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
320TY
Mounting Orientation
Vertical
Mounting Position
V1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Product Name
Submersible
Product Net Depth / Length
45 in
Product Net Height
53 in
Product Net Weight
826 lb
Product Net Width
44 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
41 A
Rated Efficiency
89.70 %
Rated Speed
1175 r/min
Replaced Product ID (OLD)
7BS32-CWS0-0007
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.5 in
Short Description
30 HP, 1200 RPM, Frame Size 320Ty, Standard, 3 PH, XPNV, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101113
Voltage Rating
460 V
Feature → Business Impact → Application: The 60 Hz, 3-phase, 460 V electrical configuration enables seamless integration with standard industrial power systems, reducing wiring complexity and enabling quick commissioning on site. This translates to faster startup times, lower installation costs, and improved system reliability for wastewater treatment and mining pumps where uptime matters. Feature → Business Impact → Application: XPNV explosion-proof enclosure and Class I, Group C&D protection deliver enhanced safety in hazardous locations, supporting regulatory compliance and reducing risk of ignition in chemical processing and oil-related installations. Feature → Business Impact → Application: 30 HP, frame 320TY, direct-on-line starting, and 41 A rated current provide robust performance with minimal control hardware, cutting capital expenditure on starters while maintaining headroom for peak loads in continuous-duty service. Feature → Business Impact → Application: Insulation class F and service factor 1.15 offer extended motor life and resilience under demanding duty cycles, translating to lower maintenance costs and predictable performance in wastewater and sump pumping. Feature → Business Impact → Application: Foot-mounted, vertical (V1) mounting and shaft diameter 2.5 in simplify installation and alignment, enabling straightforward retrofits in existing pump skids while supporting standard NEMA designs. Feature → Business Impact → Application: Stocked-at-warehouses availability across multiple regions shortens lead times, improves procurement certainty, and supports just-in-time maintenance programs for critical pumping assets.
Get a Quick Quote for a ABB 7BSUM73006-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BSUM73006-4?
Enquire Now
FAQs
SUM73006-4 operates on 460 V, 3-phase, 60 Hz power. It delivers 30 HP with a rated current around 41 A and is designed for direct-on-line starting. The motor is suitable for vertical, foot-mounted installation and features a 320TY frame to fit standard pump assemblies.
Yes. The motor uses an XPNV explosion-proof enclosure and features Class I, Group C & D protection. It aligns with NEMA design standards for safe operation in hazardous areas, making it appropriate for chemical processing, mining, and other potentially explosive environments.
The unit is designed for vertical, foot-mounted installation (V1). It uses a 320TY frame with a 2.5 in shaft diameter and supports direct-on-line starting for simplified wiring and control schemes, reducing installation time and hardware requirements in retrofit or new-build pumping systems.
Key specs include 30 HP, 60 Hz operation, 3-phase design, rated speed around 1175 r/min with a synchronous speed of 1200 r/min, and an efficiency of about 89.7%. The service factor is 1.15, and insulation class is F, providing robust performance for continuous-duty pumping and demanding duty cycles.
Lead time is listed as 0 day, with stock held at multiple warehouses to support fast delivery. Warranty terms indicate that warranty returns are required for any product issues, so maintainers should follow standard RMA procedures to ensure proper service and support.
