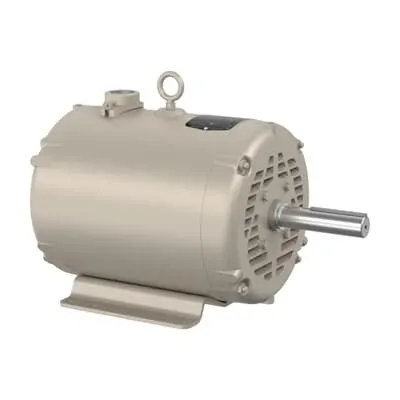

ABB 7BUCC10150 Farm Duty Motor - 1PH 60Hz 230V CSA UR
Part Number: 7BUCC10150
Quick Summary
Farm Duty Motor ABB UCC10150 delivers reliable 10-15 HP performance for agricultural processing. This motor is designed to handle variable conditions common in open farm environments, crop drying, and grain handling, delivering steady torque at 230 V, 60 Hz, and 1-phase supply. For engineers and procurement teams, the challenge is often balancing performance with fast availability; this unit is stocked at multiple warehouses with 0-day lead time, simplifying replacement and downtime planning. Certified to CSA and UR standards, and aligned with recognized NEMA capabilities, the motor also features a rugged open enclosure, foot mounting, and a 215Z frame—combining durability with ease of installation. The combination supports energy efficiency targets and predictable maintenance costs for plant floor operations.
Product Information
Extended Description
7BUCC10150 ABB: Farm Duty Motor 10 Hp 230 V (UCC10150)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10-15HP,3450RPM,1PH,60HZ,215Z,3740C
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCC10150
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYE764: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
UCC10150
Gross Volume
7561.383 inÂł
Gross Weight
127 lb
Horsepower Rating UL/CSA
10.000 Hp | 15.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10-15HP,3450RPM,1PH,60HZ,215Z,3740C,OPEN
Made To Order
No
Medium Description
Universal Crop Dryer, 10-15 HP, 3600 RPM, Frame Size 215Z, Standard Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (UCC10150)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215Z
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp | 15 Hp
Power Factor
98 %
Product Name
Universal Crop Dryer
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
127 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
41 A | 57 A
Rated Efficiency
83 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
10-15 HP, 3600 RPM, Frame Size 215Z, Standard, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature: 1-phase 230 V operation at 60 Hz with 10-15 HP output. Business Impact: Simplifies electrical design on farms where single-phase supply is common, reducing wiring complexity and installation costs. Application: Crop dryers and grain handling systems in rural facilities benefit from straightforward integration and reliable torque. Feature: Frame 215Z, open enclosure, foot-mounted, horizontal mounting, and DOL start. Business Impact: Easier retrofits and faster installation with minimal enclosure constraints; lower mounting costs and improved cooling in open environments. Application: Universal Crop Dryer setups and lightweight processing lines. Feature: Efficiency and power factor (83% / 98%). Business Impact: Lower operating costs and improved power quality, supporting compliance with energy targets and reduced utility penalties. Application: Continuous duty scenarios in farm processing. Feature: Stocked at multiple warehouses with 0-day lead time. Business Impact: Rapid procurement minimizes downtime and accelerates maintenance planning. Application: Critical spares for production lines and agribusiness facilities. Feature: Certifications and standards (NEMA, CSA | UR). Business Impact: Regulatory compliance and safer operation in regulated environments; simplifies procurement audits. Application: Agricultural equipment, processing plants, and regulated farm settings.
Get a Quick Quote for a ABB 7BUCC10150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BUCC10150?
Enquire Now
FAQs
UCC10150 is a 1-phase, 230 V motor designed for straightforward integration into typical farm electrical infrastructures. It uses Direct On Line starting and a 60 Hz supply, matching common agricultural installations. With a 215Z frame and foot-mounted orientation, it simplifies mounting on existing conveyors or crop-drying equipment, minimizing modification needs.
Key specs include 10-15 HP output, 230 V, 60 Hz, 1-phase, and a 3450 r/min nominal speed with a 3600 r/min synchronous speed. The insulation class is F and power factor is 98%, contributing to energy efficiency and reduced electrical losses in intermittent and continuous farm applications.
Yes. The 1PH 230 V design and open enclosure suit crop-drying and grain-handling equipment, while the 215Z frame and horizontal mounting support easy retrofits. The DOL starting method provides robust startup for short-duty cycles common in agricultural processing.
The UCC10150 carries CSA and UR certifications and aligns with NEMA standards, helping with safety audits and compliance in regulated environments. The open enclosure and rated insulation class add to its suitability for exposed farm conditions.
With a sealed bearing design, insulation class F, and a rugged 215Z frame, maintenance is minimized. The high power factor and efficient operation lower energy costs, while 0-day lead time stock reduces downtime. ROI improves through faster uptime and reduced replacement waiting periods.
