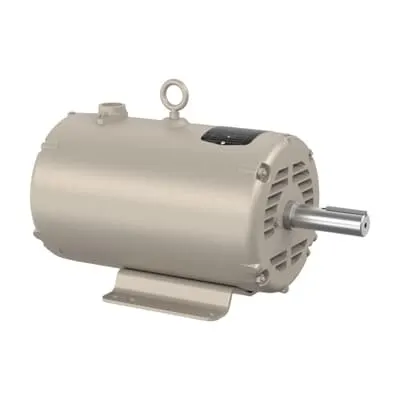

ABB 7BUCC5700 Farm Duty Motor - CSA UR Certified
Part Number: 7BUCC5700
Quick Summary
ABB 7BUCC5700 Farm Duty Motor delivers reliable 5 HP performance for crop-drying and processing lines in agricultural equipment. This single-phase, 230 V motor is designed to minimize downtime with zero-day lead times and immediate availability from multiple US warehouses. With CSA and UR certifications and compliance to NEMA standards, it meets stringent safety and compatibility requirements while offering straightforward installation. For OEMs and maintenance teams, the combination of open enclosure, 184TZ frame, and 60 Hz operation translates into predictable performance, easy maintenance, and efficient replacement across farm-scale applications.
Product Information
Extended Description
7BUCC5700 ABB: Farm Duty Motor 5 Hp 230 V (UCC5700)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5-7HP,3450RPM,1PH,60HZ,184TZ,3634C,
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCC5700
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYF548: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
UCC5700
Gross Volume
3496.049 inÂł
Gross Weight
74 lb
Horsepower Rating UL/CSA
5.000 Hp | 7.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
5-7HP,3450RPM,1PH,60HZ,184TZ,3634C,OPEN
Made To Order
No
Medium Description
Universal Crop Dryer, 5-7 HP, 3600 RPM, Frame Size 184Tz, Standard Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (UCC5700)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp | 7 Hp
Power Factor
97 %
Product Name
Universal Crop Dryer
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
74 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.5 A | 29 A
Rated Efficiency
79 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5-7 HP, 3600 RPM, Frame Size 184Tz, Standard, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature → Business Impact → Application: The 230 V, 60 Hz, single‑phase design simplifies electrical design and wiring on farm equipment, enabling rapid integration with crop dryers and processing lines. This reduces installation time and capital outlay while improving first-run performance and uptime. The open enclosure with a 184TZ frame and foot-mounted base supports straightforward mounting in tight machine spaces, improving vibration control and service access in agricultural conveyors. Feature → Business Impact → Application: Direct On Line starting for 1‑phase motors minimizes start-up hardware and soft-start requirements, lowering initial costs and maintenance complexity on belt conveyors and grain dryers. The 2‑pole, 5–7 HP configuration delivers robust torque at 3450 r/min (3600 r/min synchronous), delivering reliable startup and steady operation under continuous duty in farm environments. Feature → Business Impact → Application: Insulation class F and a 74 lb steel frame provide durable performance in warm, dusty farm settings, contributing to longer motor life, fewer replacements, and predictable maintenance cycles for universal crop dryers. Feature → Business Impact → Application: CSA | UR certifications and NEMA standards alignment deliver regulatory compliance and supplier confidence, facilitating procurement processes for OEMs and contractors and reducing risk across cross-border agricultural projects. Feature → Business Impact → Application: Stock availability (0 day lead time) and multiple warehouse locations improve spare-part planning and just-in-time maintenance, minimizing downtime on processing lines and ensuring rapid replacement when needed. Industry-specific context: The motor’s 184TZ frame, 1PH, 60 Hz rating, and 1‑phase open enclosure are a natural fit for farm-scale drying and processing equipment, where reliability, quick service, and compatibility with standard mounting patterns are critical for operational efficiency.
Get a Quick Quote for a ABB 7BUCC5700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BUCC5700?
Enquire Now
FAQs
The ABB 7BUCC5700 is designed for 230 V, 1-phase operation with a 60 Hz supply and a 184TZ frame. It uses a foot-mounted, open-enclosure design and supports horizontal orientation with a standard F1 mounting position. Verify your electrical service matches nominal 230 V and use direct-on-line starting for quick engagement on crop-dryer conveyors.
Key specifications include 60 Hz operation, 2-pole design, synchronous speed 3600 r/min (3450 r/min running), open enclosure, 184TZ frame, 1-phase 230 V, and 5–7 HP output with rated current 19.5–29 A. Insulation class is F, offering suitable thermal margins for continuous farm-duty operation and dependable torque for startup of processing lines.
Yes. The 7BUCC5700 is a farm-duty motor built for continuous operation with 1‑phase, 230 V power and 60 Hz. Its 2-pole design and 3600 r/min synchronous speed provide strong starting torque and reliable steady-state operation, ideal for crop dryers, conveyors, and other agricultural processing equipment that require consistent performance in demanding environments.
This motor carries CSA and UR certifications and aligns with NEMA standards, ensuring regulatory compliance and safe electrical performance. Domestic origin is United States, with zero-day lead times and active sales status, making it a trustworthy choice for U.S. OEMs and maintenance teams seeking compliant, readily available farm motors.
Expect low maintenance due to a robust steel frame, open enclosure, and 1‑phase 230 V design that minimizes wiring complexity. The product ships stocked across multiple warehouses, enabling rapid replacements and reducing downtime. Warranty terms and straightforward direct-on-line startup further support favorable total cost of ownership for farm-scale drying and processing systems.
