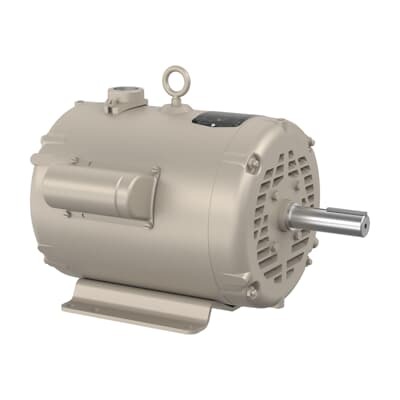

ABB 7BUCL1015 Farm Duty Motor - CSA UR Certified
Part Number: 7BUCL1015
Quick Summary
ABB 7BUCL1015 Farm Duty motor provides reliable 10 HP performance for grain dryers and vane axial fans operating on 230 V single-phase power. This design targets the harsh realities of agricultural environments where uptime and energy efficiency directly impact throughput. The unit is CSA | UR listed and designed to NEMA standards, supporting open-enclosure cooling and robust serviceability. With 60 Hz operation and a frame size 215Z, it delivers predictable start-up and lower maintenance costs, while enabling farmers and integrators to optimize energy use and procurement.
Product Information
Extended Description
7BUCL1015 ABB: Farm Duty Motor 10 Hp 230 V (UCL1015)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10-15 AIR OVERHP,3450RPM,1PH,60HZ,2
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCL1015
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYM291: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
UCL1015
Gross Volume
7561.383 in³
Gross Weight
137 lb
Horsepower Rating UL/CSA
10.000 Hp | 15.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10-15 AIR OVERHP,3450RPM,1PH,60HZ,215Z,3
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 10-15 HP, 3600 RPM, Frame Size 215Z, Standard Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (UCL1015)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp | 15 Hp
Power Factor
89 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
137 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
45 A | 64 A
Rated Efficiency
84 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
10-15 HP, 3600 RPM, Frame Size 215Z, Standard, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Open enclosure design at 230 V single-phase power enhances cooling and simplifies maintenance, reducing downtime in dusty farm environments and improving serviceability for grain-drying equipment. This translates to a measurable boost in uptime and lower repair costs when used with grain dryers and vane axial fans in open-air facilities. Frame size 215Z and foot-mounted installation provide straightforward integration with existing bases and equipment stands, accelerating commissioning on new installations and replacements. The 10-15 HP, 3450 r/min, 2-pole configuration delivers reliable, single-speed performance ideal for continuous duty in agriculture, while Direct On Line starting minimizes starting current impact on distribution networks and reduces installation complexity. Insulation class F and an efficiency level of 84% support sustainable operation, lowering energy costs over the motor’s lifetime. Rated current of 45 A or 64 A accommodates typical 230 V supply branches, offering flexibility for panel design and protective devices. Compliance with CSA | UR listings and NEMA design standards provides regulatory confidence for procurement and OEM integration. With stock available across multiple warehouses and a 0 day lead time, this motor supports fast procurement and streamlined maintenance planning for farm operations.
