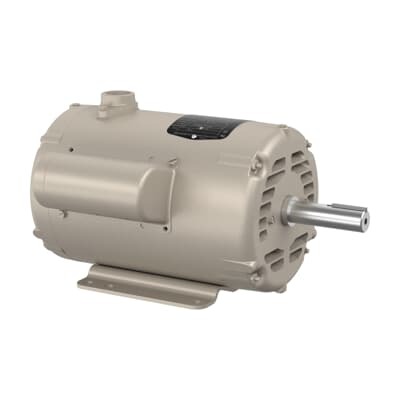

ABB 7BUCL3145 Farm Duty Motor - CSA UR 230V
Part Number: 7BUCL3145
Quick Summary
7BUCL3145 Farm Duty Motor provides reliable 3 HP, 230 V operation for grain dryers and axial fans. In agricultural settings, users frequently contend with rugged environments, frequent starts, and the need for compact, easily installed motors. This ABB offering delivers CSA and UR certifications, RoHS compliance, and a NEMA-aligned design to meet safety and regulatory expectations. Built for straightforward installation, it supports a 145TZ frame, 1-phase power, and 60 Hz operation, delivering consistent uptime. The result is lower maintenance costs, smoother start-ups, and a clearer path to regulatory compliance for farm equipment manufacturers and agribusiness integrators.
Product Information
Extended Description
7BUCL3145 ABB: Farm Duty Motor 3 Hp 230 V (UCL3145)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3-4.5HP,3450RPM,1PH,60HZ,145TZ,3540
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCL3145
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYT926: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OLC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
UCL3145
Gross Volume
3496.049 in³
Gross Weight
60 lb
Horsepower Rating UL/CSA
3.000 Hp | 4.500 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
3-4.5HP,3450RPM,1PH,60HZ,145TZ,3540LC
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 3-4.5 HP, 3600 RPM, Frame Size 145Tz, Standard Mounting, 1 Phase, OLC Enclosure, 230 V, 60 Hz (UCL3145)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp | 4.5 Hp
Power Factor
91 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
60 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14.3 A | 20 A
Rated Efficiency
77.80 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T926T819
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
3-4.5 HP, 3600 RPM, Frame Size 145Tz, Standard, 1 PH, OLC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature → Business Impact → Application: The 1-phase 230 V supply and 60 Hz rating simplify electrical design and reduce wiring complexity for farm installations, enabling quicker commissioning of grain-drying equipment and vane axial fans. This supports faster project timelines and lower installation costs. Feature → Business Impact → Application: Direct On Line starting eliminates the need for soft-starters in many light-load applications, reducing upfront capital and maintenance expenses while delivering immediate torque for fans and conveyors. Feature → Business Impact → Application: An OLC enclosure provides protection in dusty, outdoor, or otherwise harsh environments common in grain handling facilities, boosting reliability and minimizing unplanned downtime. Feature → Business Impact → Application: 145TZ frame with foot mounting and standard drive-end flange type ensures compatibility with existing equipment footprints, making retrofits and replacements straightforward for plant operators and integrators. Feature → Business Impact → Application: RoHS compliance, CSA | UR certification, and NEMA alignment support global procurement and regulatory acceptance, reducing compliance risk and expediting cross-border deployments. Feature → Business Impact → Application: High Power Factor (91%) and rated efficiency (77.8%) translate to measurable energy savings during long-running duty cycles typical of grain dryers and fans, improving total cost of ownership over the motor’s life. Feature → Business Impact → Application: Stocked across multiple warehouses with 0-day lead times, improving supply chain resilience, project scheduling, and serviceability for maintenance teams. Industry context notes: In agricultural automation, motors like the 7BUCL3145 are frequently chosen for 1-phase 230 V service in grain handling apps due to their balance of performance, reliability, and regulatory compliance, ensuring steady operation in seasonal production cycles.
Get a Quick Quote for a ABB 7BUCL3145
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BUCL3145?
Enquire Now
FAQs
The 7BUCL3145 is a 1-phase, 230 V motor designed for 60 Hz operation. It simplifies wiring and installation in typical farm buildings and integrated grain-drying systems, enabling straightforward integration with standard control cabinets and switches.
The motor uses a foot-mounted design with a standard drive-end flange and an OLC enclosure. This combination provides robust protection against dust and environmental exposure, facilitating reliable operation in grain handling and grain dryer applications and simplifying retrofits into existing installations.
The motor is CSA and UR certified and RoHS compliant, with NEMA standards alignment. These certifications ensure electrical safety, regulatory compliance across regions, and suitability for global procurement and field service in agricultural equipment.
Insulation Class F and ambient temperature rating of up to 40 °C support reliable operation in typical farm environments. With direct-on-line starting and a robust 145TZ frame, the motor offers predictable torque and minimal maintenance when used in consistent, moderate-load applications like fans and grain dryers.
Featuring a high power factor (91%) and rated efficiency around 77.8%, the motor reduces reactive and real power losses during extended duty cycles. Coupled with 0-day lead times and easy installation, it lowers lifecycle costs and accelerates project payback in agricultural automation deployments.
