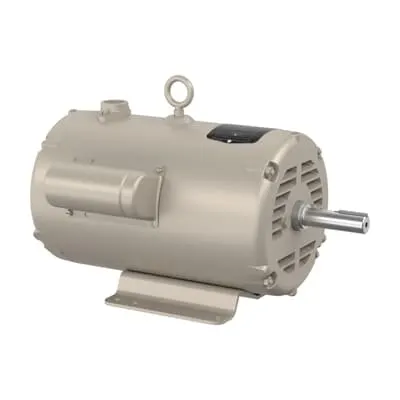

ABB 7BUCL345 Farm Duty Motor - 3-4.5HP,230V,60Hz CSA UR
Part Number: 7BUCL345
Quick Summary
ABB 7BUCL345 Farm Duty Motor is a reliable single-phase drive for grain dryers and farm equipment. Engineers often face mismatched speed, voltage, and enclosure choices that delay projects and raise maintenance costs. The motor carries CSA/UR safety certifications and compliance with NEMA standards, plus an OPEN enclosure and F-class insulation for harsh environments. This combination reduces procurement complexity and installation time while delivering consistent performance at 60 Hz, supporting 230 V systems and 3-4.5 HP output for agricultural processes.
Product Information
Extended Description
7BUCL345 ABB: Farm Duty Motor 3 Hp 230 V (UCL345)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3-4.5HP,3450RPM,1PH,60HZ,182Z,3634L
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCL345
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYF549: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
UCL345
Gross Volume
3496.049 inÂł
Gross Weight
72 lb
Horsepower Rating UL/CSA
3.000 Hp | 4.500 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
3-4.5HP,3450RPM,1PH,60HZ,182Z,3634L,OPEN
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 3-4.5 HP, 3600 RPM, Frame Size 182Z, Standard Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (UCL345)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp | 4.5 Hp
Power Factor
86 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
72 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
22 A
Rated Efficiency
74 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
3-4.5 HP, 3600 RPM, Frame Size 182Z, Standard, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature: 1-phase 230V operation at 60 Hz with 3-4.5 HP output. Business Impact: Simplified wiring, reduced startup time, and dependable power delivery for low-voltage agricultural equipment. Application: Grain dryers and vane axial fans in farm facilities seeking predictable start-up and steady operation. Feature: 182Z frame, foot-mounted, horizontal orientation (F1). Business Impact: Easy retrofits and flexible installation with common mounting footprints, minimizing downtime. Application: Retrofit projects and new builds in grain handling lines and processing units. Feature: OPEN enclosure with insulation class F. Business Impact: Accessible maintenance while sustaining thermal performance in moderate environments; trade-off is environmental exposure, so integration with clean-dry areas is advisable. Application: Open-install grain dryers and outdoor or semi-enclosed agricultural enclosures. Feature: Efficiency 74% and power factor 86%. Business Impact: Lower energy costs and improved power quality across the plant, reducing utility penalties and boosting overall line reliability. Application: Continuous-duty pumps, fans, and conveyors in grain processing. Feature: Direct On Line starting and 2-pole, 3450 r/min rating (synchronous 3600 r/min). Business Impact: Fast, cost-effective starting with minimal control hardware; reduces panel complexity and installation time. Application: High-speed duty fans and grain-drying motors requiring immediate torque. Feature: Certifications and stock readiness (CSA|UR, NEMA standard, 0-day lead time, multi-warehouse availability). Business Impact: Compliance confidence and rapid procurement, enabling just-in-time manufacturing and reduced stock carrying costs. Application: Global plant rollouts and maintenance programs needing reliable sourcing from EGAUT001, GBINS001, SGIND004, USABB014 warehouses.
