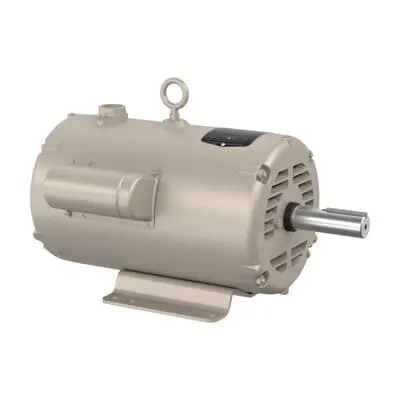

ABB 7BUCL570 Farm Duty Motor for Grain Equipment - CSA UR
Part Number: 7BUCL570
Quick Summary
ABB 7BUCL570 Farm Duty Motor is a 5 HP, 230 V single-phase motor designed for grain dryers, vane axial fans, and other farm equipment. Farm environments demand reliability, fast availability, and parts compatibility to minimize downtime. It carries CSA and UR certifications and follows NEMA design code L, with a robust OPAO enclosure for dusty, outdoor-like conditions. Stocked across multiple warehouses with 0 day lead time, this motor supports rapid maintenance and scalable integration for farm automation and processing lines. Designed for continuous operation, it balances ruggedness with efficiency in demanding agricultural applications.
Product Information
Extended Description
7BUCL570 ABB: Farm Duty Motor 5 Hp 230 V (UCL570)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5-7 AIR OVERHP,3450RPM,1PH,60HZ,182
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCL570
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYM939: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPAO
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
UCL570
Gross Volume
5274.135 in³
Gross Weight
91 lb
Horsepower Rating UL/CSA
5.000 Hp | 7.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
5-7 AIR OVERHP,3450RPM,1PH,60HZ,182TZ,36
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 5-7 HP, 3600 RPM, Frame Size 182Tz, Standard Mounting, 1 Phase, OPAO Enclosure, 230 V, 60 Hz (UCL570)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp | 7 Hp
Power Factor
82 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
91 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
35 A
Rated Efficiency
80 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5-7 HP, 3600 RPM, Frame Size 182Tz, Standard, 1 PH, OPAO, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature: 5 HP, 230 V single-phase operation. Business Impact: Simplifies control system design and reduces wiring complexity while meeting standard farm duty loads. Application: Grain dryers and vane axial fans in agricultural settings. Feature: 182TZ frame, foot-mounted, horizontal mounting. Business Impact: Facilitates straightforward installation on existing platforms and common equipment, reducing commissioning time. Application: Retrofit projects and new grain-drying lines with standard mounting patterns. Feature: Direct On Line starting and 3450 rpm at 60 Hz. Business Impact: Eliminates costly soft-starter or VFD requirements for straightforward start-up and predictable startup torque. Application: Continuous-duty farm applications where rapid engagement is critical. Feature: OPAO enclosure, insulation class F, ambient 40 °C. Business Impact: Delivers robust protection against dust and moderate heat, extending service intervals and lowering maintenance costs. Application: Outdoor or semi-enclosed grain handling and drying equipment. Feature: Rated current 35 A, 1-phase operation, 230 V. Business Impact: Enables compatible electrical supply design and reduces panel complexity, improving overall system reliability. Application: Agricultural facilities with standardized 230 V service and 60 Hz power. Insight: The 182TZ frame, NEMA design code L, and 5-7 HP rating align with widespread farm-duty motor usage, improving spare-part availability and uplifting installation efficiency for grain dryers and other farm-processing equipment.
Get a Quick Quote for a ABB 7BUCL570
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BUCL570?
Enquire Now
FAQs
The motor is foot-mounted with a horizontal orientation and uses the standard 182TZ frame, compatible with common drive-end flanges. This simplifies retrofit projects and reduces the need for custom mounting brackets, speeding up installation in grain dryers and related equipment.
It is a 1-phase, 230 V, 60 Hz motor rated at 5-7 HP, with a direct-on-line starting method and a nominal speed of 3450 r/min. The rated current is 35 A, and the insulation class is F, supporting reliable operation in typical farm environments.
Yes. The motor uses an OPAO enclosure and is designed for continuous duty in agricultural settings. Combined with a 40 °C ambient rating and basic protection against dust, it maintains performance with lower maintenance intervals when installed in grain dryers and fans.
The unit carries CSA and UR certifications and follows the NEMA design code L, ensuring regulatory compliance and robust design suitable for farm automation and processing lines.
Stock is available across multiple warehouses with 0-day lead time, reducing downtime during maintenance cycles. Its rugged enclosure, standard mounting, and 1-phase operation help minimize spare-parts inventory and maximize uptime, contributing to a favorable total cost of ownership.
