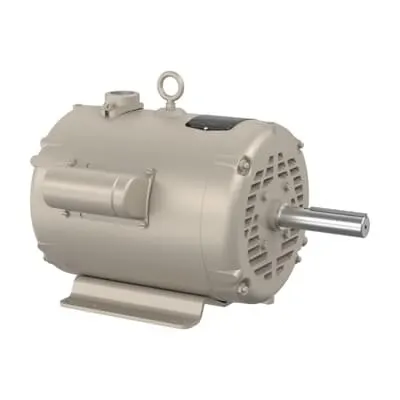

ABB 7BUCL7510 Farm Duty Motor - 1Ph 230V 60Hz CSA/UR
Part Number: 7BUCL7510
Quick Summary
Farm Duty Motor 7BUCL7510 by ABB delivers 10.5 HP at 230 V for grain dryers and vane axial fans. In agricultural environments, downtime and motor mismatches can bottleneck throughput and inflate maintenance costs. This model is CSA and UR listed, designed with a NEMA design code L and a weather-proven OPAO enclosure to withstand typical farm conditions. The combination of a sealed 6307 bearing and direct-on-line starting supports robust performance in continuous duty. With a foot-mounted 215Z frame and 1-phase, 60 Hz operation, it aligns with standard agricultural circuits while simplifying procurement and stocking across multiple warehouses. This translates to lower total cost of ownership and faster project timelines for system integrators and farm operators.
Product Information
Extended Description
7BUCL7510 ABB: Farm Duty Motor 10.5 Hp 230 V (UCL7510)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5-10.5 AIR OVERHP,3450RPM,1PH,60H
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCL7510
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYE767: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPAO
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
UCL7510
Gross Volume
7192.91 inÂł
Gross Weight
107 lb
Horsepower Rating UL/CSA
10.500 Hp | 7.500 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
7.5-10.5 AIR OVERHP,3450RPM,1PH,60HZ,215
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 7.5-10.5 HP, 3600 RPM, Frame Size 215Z, Standard Mounting, 1 Phase, OPAO Enclosure, 230 V, 60 Hz (UCL751
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10.5 Hp | 7.5 Hp
Power Factor
82 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
107 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
37 A | 46 A
Rated Efficiency
81 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
7.5-10.5 HP, 3600 RPM, Frame Size 215Z, Standard, 1 PH, OPAO, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature: 1-phase, 230 V operation simplifies wiring and reduces panel size, cutting installation time and costs in farm-scale projects. Business Impact: Faster commissioning and lower capital expenditure for new grain-dryer or vane-axial-fan installations. Application: Ideal for single-phase plant lines requiring compact control gear in agricultural facilities. Feature: Direct On Line (DOL) starting capability eliminates the need for soft-start equipment in compatible loads. Business Impact: Quick motor response, reduced motor-relay complexity, and lower energy losses during start. Application: Grain dryers and air-handling fans where rapid ramp is beneficial and electrical infrastructure is limited.Feature: Farm Duty continuous rating with robust 2-pole operation. Business Impact: Higher uptime and predictable duty cycles in demanding environments. Application: Long-run grain-dryer systems and continuous-Performance airflow applications.Feature: Frame Size 215Z, foot-mounted with F1 mounting position. Business Impact: Simplified installation, retrofits, and base-plate compatibility across existing equipment. Application: Plant floors and agricultural facilities where rigid stability and maintenance accessibility are essential.Feature: OPAO enclosure with steel frame and 60 Hz operation. Business Impact: Enhanced protection against dust, moisture, and temperature fluctuations while maintaining performance. Application: Outdoor or semi-exposed installations on grain-drying lines and fans.Feature: Efficiency 81% and Power Factor 82% reduce running costs and thermal loading. Business Impact: Lower energy consumption, smaller cooling requirements, and improved electrical compatibility. Application: Continuous-duty drives in processing lines that run across harvest seasons.Feature: Sealed bearings 6307 extend service life and reduce lubrication maintenance. Business Impact: Fewer unscheduled maintenance events and longer intervals between service visits. Application: High-vibration, high-load fan assemblies and agitators in grain handling systems.Feature: CSA/UR certification confirms compliance with mounting, wiring, and safety standards. Business Impact: Easier procurement, faster regulatory approvals, and lower risk of non-conformance. Application: Systems in North American agricultural facilities where regulatory traceability matters.
