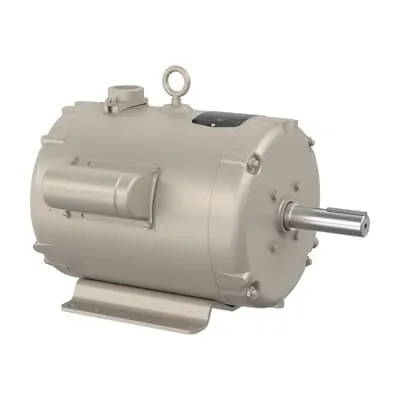

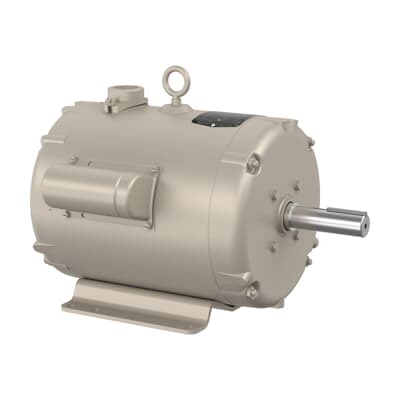

ABB 7BUCLE1015 FarmDuty Motor - CSA UR Certified
Part Number: 7BUCLE1015
Quick Summary
7BUCLE1015 FarmDuty Motor delivers a reliable 10 HP single-phase drive for grain dryers, vane axial fans, and other farm equipment. This motor is designed to endure harsh agricultural environments while simplifying installation and maintenance. Engineers often face stock shortages, long supplier lead times, and mismatched specifications; this model mitigates those pains with immediate availability and a standardized 230 V, 60 Hz footprint. It carries CSA and UR listings along with RoHS compliance, supporting regulatory adherence across North American operations. With TEAO enclosure and a compact 215Z frame, it offers predictable service life and reduced lifecycle costs, enabling OEMs to scale production without compromising downtime or performance.
Product Information
Extended Description
7BUCLE1015 ABB: Farm Duty Motor 10 Hp 230 V (UCLE1015)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10-15HP,3500RPM,1PH,60HZ,215Z,3750L
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCLE1015
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN421: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
UCLE1015
Gross Volume
7561.383 inÂł
Gross Weight
167 lb
Horsepower Rating UL/CSA
10.000 Hp | 15.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10-15HP,3500RPM,1PH,60HZ,215Z,3750LC,TEA
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 10-15 HP, 3600 RPM, Frame Size 215Z, Standard Mounting, 1 Phase, TEAO Enclosure, 230 V, 60 Hz (UCLE1015)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215Z
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp | 15 Hp
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
167 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A | 61 A
Rated Efficiency
89 %
Rated Speed
3500 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
10-15 HP, 3600 RPM, Frame Size 215Z, Standard, 1 PH, TEAO, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature → Business Impact → Application: The 1-phase 60 Hz, 230 V input reduces wiring complexity and expands compatibility with standard plant power, enabling quick installation and fewer wiring errors in grain dryers and farm fans. This translates to faster commissioning and lower capital expenditure for new lines. The TEAO enclosure minimizes maintenance needs by eliminating internal fans, improving reliability in dusty agricultural environments and simplifying heat management during continuous operation. Direct On Line starting eliminates accessory soft-starter costs while enabling immediate startup for batch processing in grain dryers and southern irrigation systems, reducing cycle times and labor requirements. Frame size 215Z, foot-mounted base, and horizontal mounting position (F1) support straightforward installation in existing equipment cabinets and compact plant layouts, cutting integration risk and retrofit time. RoHS compliance and CSA/UR listings provide regulatory assurance, helping projects pass audits and supplier qualification more efficiently. The motor delivers a rated speed of 3500 r/min with a synchronous speed of 3600 r/min, delivering robust torque for vane axial fans and material handling in constant-duty scenarios. Industry-specific context shows that 10 HP outputs in a 230 V, 60 Hz single-phase package offer a favorable balance of performance and energy consumption for medium-duty grain drying and agricultural fans, supporting predictable maintenance intervals and improved overall equipment effectiveness.
