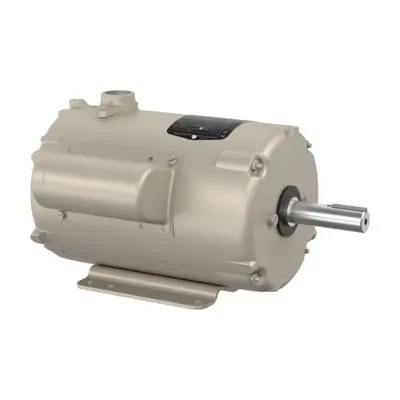

ABB UCLE153 Farm Duty Motor - CSA/UR Certified
Part Number: 7BUCLE153
Quick Summary
ABB UCLE153 is a farm-duty motor designed for grain dryers and vane axial fans, delivering 1.5–3 HP from a 230 V, 1-phase, 60 Hz supply. This rugged TEAO enclosure motor uses a 143TZ frame and foot-mounted base for straightforward installation in tight farm spaces. By supporting direct-on-line starting and a robust NEMA Design Code L construction, it reduces control hardware and startup costs while maintaining reliable operation under continuous duty. The design is RoHS compliant and carries CSA and UR certifications, ensuring regulatory compliance across U.S. and international projects. With stock available in multiple warehouses, the UCLE153 enables faster procurement and predictable maintenance planning—key for dairy, grain, and feed processing applications.
Product Information
Extended Description
7BUCLE153 ABB: Farm Duty Motor 1.5 Hp 230 V (UCLE153)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5-3HP,3450RPM,1PH,60HZ,3532LC,N
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCLE153
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2504: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
UCLE153
Gross Volume
3496.049 in³
Gross Weight
52 lb
Horsepower Rating UL/CSA
1.500 Hp | 3.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
1.5-3HP,3450RPM,1PH,60HZ,3532LC,N
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 1.5-3 HP, 3600 RPM, Frame Size 143Tz, Standard Mounting, 1 Phase, TEAO Enclosure, 230 V, 60 Hz (UCLE153)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp | 3 Hp
Power Factor
95 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
52 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.5 A
Rated Efficiency
78 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35E2504T138G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5-3 HP, 3600 RPM, Frame Size 143Tz, Standard, 1 PH, TEAO, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature: 1-phase 230 V operation with 60 Hz frequency. Business Impact: simplifies electrical infrastructure and minimizes wiring complexity on farm sites, lowering installation costs. Application: ideal for grain dryers, vane axial fans, and other single-phase agricultural equipment. Feature: TEAO enclosure on a rugged steel 143TZ frame. Business Impact: enhanced heat dissipation and mechanical durability in harsh farm environments, improving uptime. Application: outdoor and semi-outdoor agriculture machinery that requires robust cooling. Feature: Foot-mounted, horizontal mounting position with 143TZ frame. Business Impact: easy retrofit and quick installation into existing equipment footprints, reducing downtime. Application: retrofits in grain handling and drying lines. Feature: Direct On Line (DOL) starting and 1-phase operation. Business Impact: minimizes control hardware and simplifies wiring, cutting capital expenditure and commissioning time. Application: start-up in grain dryers and fans where simple control is preferred. Feature: NEMA Design Code L, Insulation Class F. Business Impact: reliable continuous duty performance with higher temperature tolerance, lowering maintenance frequency. Application: long-running agricultural processes in variable ambient conditions. Feature: Efficiency rating ~78% and horsepower range 1.5–3 HP. Business Impact: energy savings over extended run cycles, reducing operating costs. Application: daily grain drying, ventilation, and process fans. Feature: RoHS compliant and CSA/UR certified. Business Impact: regulatory compliance, safer materials, and easier product acceptance in global markets. Application: quality-conscious farm automation projects with stringent sourcing requirements.
