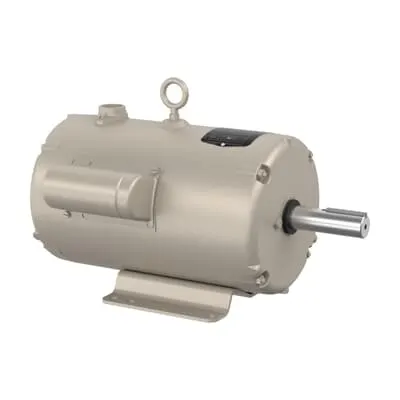

ABB UCLE570 Farm Duty Motor - CSA UR
Part Number: 7BUCLE570
Quick Summary
ABB UCLE570 Farm Duty Motor delivers reliable 5 HP performance for grain drying and vane axial fans. This single-phase, 230 V TEAO motor is designed to keep agricultural equipment running with minimal maintenance and downtime. Operators often struggle with heat, wear, and unexpected motor failures in harsh farm environments; this motor’s rugged steel frame, high-temperature insulation, and direct-on-line start help mitigate those issues. With CSA and UR certifications and a NEMA-design alignment, it meets essential regulatory requirements while delivering predictable torque and long life. Stocked across multiple warehouses with zero lead time, it supports efficient OEM sourcing and rapid field service, reducing downtime costs and sustaining production schedules.
Product Information
Extended Description
7BUCLE570 ABB: Farm Duty Motor 5 Hp 230 V (UCLE570)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5-7 AIR OVERHP,3450RPM,1PH,60HZ,182
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCLE570
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYQ214: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
UCLE570
Gross Volume
5274.135 inÂł
Gross Weight
93 lb
Horsepower Rating UL/CSA
5.000 Hp | 7.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
H
Invoice Description
5-7 AIR OVERHP,3450RPM,1PH,60HZ,182TZ,36
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 5-7 HP, 3600 RPM, Frame Size 182Tz, Standard Mounting, 1 Phase, TEAO Enclosure, 230 V, 60 Hz (UCLE570)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp | 7 Hp
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
93 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
20.5 A | 27.7 A
Rated Efficiency
84 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5-7 HP, 3600 RPM, Frame Size 182Tz, Standard, 1 PH, TEAO, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
TEAO enclosure reduces maintenance and enclosure-related costs, protecting windings in dusty farm environments. This design lowers service costs and simplifies installation for grain-drying equipment and vane axial fans where reliability matters. The 5-7 HP, 230 V, 60 Hz specification delivers strong starting torque and stable fan performance, speeding up drying cycles and reducing energy waste in agricultural processing lines. The rugged 182TZ steel frame with foot-mounted orientation provides durability and easy retrofit compatibility in existing dryers and conveyors, minimizing vibration and installation time. Direct On Line starting and 1-phase operation cut control wiring and panel costs, streamlining commissioning in farm buildings. Insulation class H and a 40 °C ambient rating ensure reliable operation in hot environments, while RoHS and CSA/UR certifications deliver regulatory assurance for maintenance planning and supplier audits. With RoHS compliance and standard mounting (horizontal, F1), this motor fits common OEM configurations and simplifies spare-part inventories. Stock at multiple warehouses (including US and China) with 0-day lead time supports fast procurement, reducing downtime in grain-dryer and feed-processing facilities.
