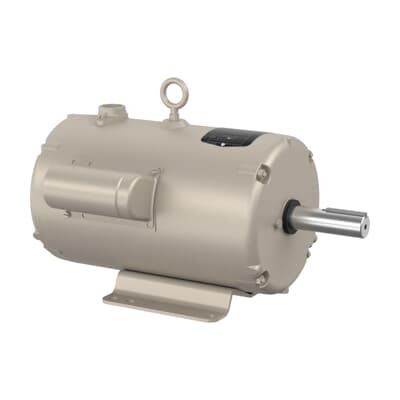

ABB UCLE7510 Farm Duty Motor - CSA/UR Certified
Part Number: 7BUCLE7510
Quick Summary
ABB UCLE7510 Farm Duty Motor provides 10 HP at 230 V for grain drying and vane axial fans. This single-phase motor is engineered for reliability in demanding agricultural environments, helping OEMs reduce downtime and maintenance costs. The product supports regulatory compliance with CSA and UR certifications, RoHS compliance, and a NEMA-standard frame, ensuring safe and compatible integration with standard farm equipment. With near-zero lead times and stock in multiple warehouses, procurement is streamlined for just-in-time manufacturing. By combining robust construction with practical installation features, this motor delivers predictable performance across seasonal workloads, helping operations optimize energy use and overall equipment effectiveness.
Product Information
Extended Description
7BUCLE7510 ABB: Farm Duty Motor 10 Hp 230 V (UCLE7510)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5-10 AIR OVERHP,3450RPM,1PH,60HZ,
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCLE7510
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ215: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
UCLE7510
Gross Volume
5274.135 inÂł
Gross Weight
95 lb
Horsepower Rating UL/CSA
10.000 Hp | 7.500 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
7.5-10 AIR OVERHP,3450RPM,1PH,60HZ,182TZ
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 7.5-10 HP, 3600 RPM, Frame Size 182Tz, Standard Mounting, 1 Phase, TEAO Enclosure, 230 V, 60 Hz (UCLE751
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp | 7.5 Hp
Power Factor
95 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
95 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
38 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
7.5-10 HP, 3600 RPM, Frame Size 182Tz, Standard, 1 PH, TEAO, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Farm-duty design with TEAO enclosure reduces installation complexity and cooling requirements, delivering lower upfront costs and faster commissioning for grain-drying lines. This translates to improved uptime and reduced total cost of ownership in industrial dairy and agri-processing facilities. Frame 182TZ and foot-mounted orientation simplify retrofits and align with common drive trains, allowing straightforward integration with existing pulleys and belts and minimizing field modification time. Direct On Line starting provides immediate motor response with minimal spare parts, reducing startup shocks and maintenance intervals in demanding seasonal cycles. Electrical specs—10 HP output, 38 A rated current, 85.5% efficiency, and 95% power factor at 60 Hz—drive energy savings and cooler operation during continuous duty in feed mills and grain dryers. Certifications and compliance (RoHS, CSA, UR) ensure regulatory acceptance and safer procurement across international sites, supporting compliant sourcing for global OEMs. Stock availability and zero-day lead time improve supply chain resilience, enabling just-in-time manufacturing for agricultural equipment. Additional robustness comes from insulation class F and a 40 C ambient rating, which support reliable performance in hot farm environments. Overall, the UCLE7510 blends robust mechanicals with simple installation, reducing downtime and enabling quicker ROI for customers deploying multiple units across a facility.
