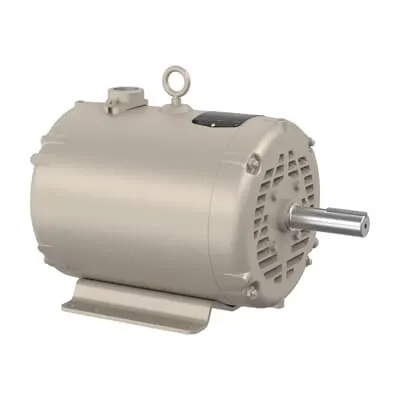

ABB UCM1014 Farm Duty Motor - 10-15HP, CSA UR
Part Number: 7BUCM1014
Quick Summary
ABB UCM1014 Farm Duty Motor delivers reliable 10-15 HP performance for agricultural equipment such as grain dryers and vane axial fans. This 3-phase motor is engineered for continuous service in open enclosure environments, reducing downtime in rugged farm settings. With CSA and UR certification and alignment to NEMA design standards, the UCM1014 supports regulatory compliance and predictable maintenance planning. The unit is built for straightforward installation and dependable operation across 208/230/460 V with 60 Hz supply. By combining strong mechanical design with efficient performance, this motor helps equipment builders and facilities managers improve reliability, reduce energy waste, and lower total cost of ownership for farm-scale processing lines.
Product Information
Extended Description
7BUCM1014 ABB: Farm Duty Motor 10 Hp 208 V (UCM1014)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10-15HP,3450RPM,3PH,60HZ,215Z,3726M
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCM1014
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYE766: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Premium Efficiency (NEMA 12-12) | Undefined Efficiency
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
UCM1014
Gross Volume
5274.135 inÂł
Gross Weight
102 lb
Horsepower Rating UL/CSA
10.000 Hp | 15.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10-15HP,3450RPM,3PH,60HZ,215Z,3726M,OPEN
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 10-15 HP, 3600 RPM, Frame Size 215Z, Standard Mounting, 3 Phase, OPEN Enclosure, 208-230/460 V, 60 Hz (U
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp | 15 Hp
Power Factor
89 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
102 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
38 A | 36 A | 18 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
10-15 HP, 3600 RPM, Frame Size 215Z, Standard, 3 PH, OPEN, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V | 460 V
Foot-mounted frame size 215Z provides easy installation next to grain-dryer assemblies and vane axial fans. This reduces alignment time and hardware footprint, cutting installation costs and downtime in retrofit projects. The 10-15 HP power range with 3450 r/min (3600 sync) design offers scalable drive for varying load conditions, improving process control for steady agricultural operations. Direct On Line starting in a 3-phase system simplifies electrical design, reducing soft-start or VFD requirements and saving upfront and maintenance costs. The OPEN enclosure, coupled with a 6307 sealed bearing and a 1.13 in shaft, enhances serviceability and durability in dusty farm environments, lowering bearing replacements and downtime. The motor’s efficiency rating of 85.5% and a power factor around 89% support energy-conscious operation, lowering energy costs over the life of grain-handling equipment. Certified to CSA and UR with NEMA design B standards, this unit ensures regulatory compliance and compatibility with common industrial interfaces, enabling faster procurement and reliable integration in agricultural automation projects.
