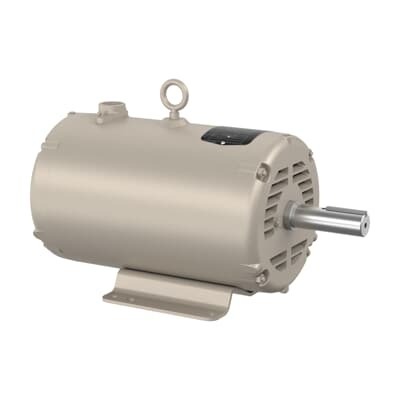

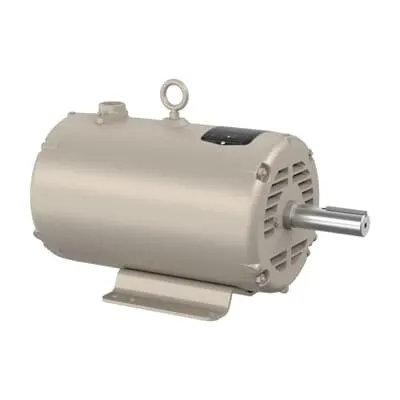

ABB 7BUCM713 Farm Duty Motor - 60 Hz 208-230/460V CSA/UR
Part Number: 7BUCM713
Quick Summary
ABB 7BUCM713 Farm Duty Motor is a rugged 10 HP, three-phase motor engineered for agricultural equipment such as grain dryers and vane axial fans. It delivers reliable start-up and steady torque in demanding farm environments, helping minimize downtime during critical harvests. This model is manufactured in the United States, carries CSA and UR certifications, and is stocked at multiple warehouses for rapid fulfillment. The 184TZ frame, foot-mount design, and open enclosure simplify retrofits and new installations alike. With insulation class F and a rated speed of 3450 r/min, the motor combines durability with energy efficiency to reduce operating costs across extended duty cycles.
Product Information
Extended Description
7BUCM713 ABB: Farm Duty Motor 10 Hp 208 V (UCM713)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5-10HP,3450RPM,3PH,60HZ,184TZ,364
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCM713
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYF551: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
UCM713
Gross Volume
3496.049 inÂł
Gross Weight
89 lb
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
7.5-10HP,3450RPM,3PH,60HZ,184TZ,3646M
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 7.5-10 HP, 3600 RPM, Frame Size 184Tz, Standard Mounting, 3 Phase, OPEN Enclosure, 208-230/460 V, 60 Hz
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
92 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
89 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 24 A | 12 A
Rated Efficiency
84 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
7.5-10 HP, 3600 RPM, Frame Size 184Tz, Standard, 3 PH, OPEN, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V | 460 V
The 10 HP, 2-pole design delivers strong torque at 60 Hz, enabling efficient operation of grain dryer motors and vane axial fans. This translates to shorter cycle times and improved processing reliability in harvest-season operations. With 208-230/460 V compatibility, it supports both retrofit projects and new installations across farm facilities, reducing wiring and configuration complexity. Frame size 184TZ and foot-mounted configuration simplify alignment and mounting, speeding up installation and maintenance while minimizing downtime. The open enclosure provides easy access for belt checks and routine service, enhancing serviceability and reducing preventive maintenance time. Insulation class F and rated efficiency of 84% support long-term energy savings and cooler running temperatures, even under continuous duty loads. Direct On Line starting keeps startup costs predictable and supports straightforward integration with existing plant controls. Certifications CSA/UR, along with US origin, reinforce compliance for agricultural equipment and food-processing environments, while stock availability across multiple warehouses improves project timing and procurement certainty. These characteristics collectively position the ABB 7BUCM713 as a practical, reliable solution for farm duty motor applications, including grain dryers and agricultural fans, without compromising performance or serviceability.
