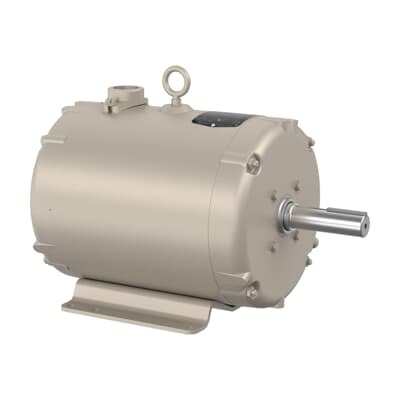

ABB 7BUCME1014 Farm Duty Motor - 208-230/460V, CSA/UR
Part Number: 7BUCME1014
Quick Summary
ABB 7BUCME1014 Farm Duty Motor delivers 10 HP for agricultural equipment like grain dryers and vane axial fans. Engineers often face the challenge of matching voltage, mounting, and regulatory requirements across facilities. CSA and UR certifications, RoHS compliance, and a NEMA-design footprint (215Z) support safe, compliant operation in demanding farms and processing plants. This solution also offers universal voltage options and a robust TEAO enclosure, delivering reliable performance with a clear total cost of ownership advantage for farm equipment procurement.
Product Information
Extended Description
7BUCME1014 ABB: Farm Duty Motor 10 Hp 208 V (UCME1014)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10-14 AIR OVERHP,3450RPM,3PH,60HZ,2
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCME1014
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYN422: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Premium Efficiency (NEMA 12-12) | Undefined Efficiency
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
UCME1014
Gross Volume
7561.383 inÂł
Gross Weight
124 lb
Horsepower Rating UL/CSA
10.000 Hp | 14.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10-14 AIR OVERHP,3450RPM,3PH,60HZ,215Z,3
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 10-14 HP, 3600 RPM, Frame Size 215Z, Standard Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (U
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp | 14 Hp
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
124 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
35 A | 33 A | 16.5 A
Rated Efficiency
87.50 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
10-14 HP, 3600 RPM, Frame Size 215Z, Standard, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V | 460 V
The TEAO enclosure paired with a 215Z frame provides a compact, maintenance-friendly footprint. This design reduces the need for external cooling and minimizes control cabinet space, significantly cutting installation time and material costs. It is ideal for grain dryers and vane axial fans in agricultural facilities where space and serviceability matter. The motor supports a broad voltage range of 208-230/460 V in a 3-phase, 60 Hz configuration, enabling universal compatibility and reducing stocking complexity across multiple sites. This flexibility lowers spare parts inventory and speeds project deployment in mixed-voltage environments. Direct On Line starting is supported, allowing straightforward commissioning and lower initial equipment costs, which is critical for seasonal harvest cycles. The 215Z frame, 1.13 in shaft diameter, and 124 lb weight deliver predictable mounting and vibration performance, easing retrofit and new installations in conventional Baldor-Reliance footprints. With RoHS compliance and insulation class F, the unit is proven to operate reliably in warm agricultural environments while meeting regulatory expectations for sustainability. Stocking at multiple warehouses and a 0-day lead time improve uptime and service response, ensuring engineers can react quickly to equipment failures or seasonal demand. The 10/14 HP output, 3450 r/min synchronous speed, and 87.5% rated efficiency support energy-conscious operation in continuous-duty applications, delivering measurable reductions in operating costs over the motor’s lifecycle.
