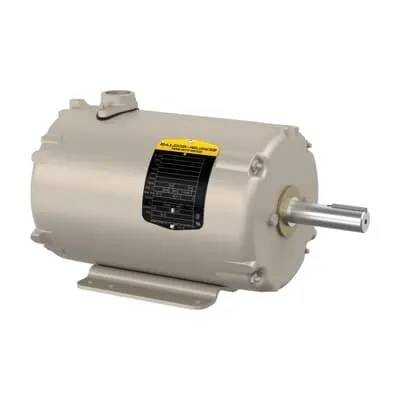

ABB UCME153 Farm Duty Motor - 1.5 HP, 208V CSA UR
Part Number: 7BUCME153
Quick Summary
UCME153 Farm Duty Motor delivers 1.5 HP, 208 V three-phase power for grain dryers, fans, and agricultural equipment. Farm operations often encounter motor overheating, reliability gaps, and long lead times for replacements. This unit is CSA | UR certified and designed to NEMA standards, featuring TEAO enclosure for dusty, outdoor environments. Its combination of 3-phase operation, horizontal foot mounting, and rugged steel frame (145TYZ) simplifies installation and stocking while reducing field service calls. Operators gain predictable performance, improved uptime, and lower maintenance costs, with immediate availability from multiple warehouses. In short, it aligns with farm-scale automation goals and provides a dependable backbone for grain-drying and ventilation systems.
Product Information
Extended Description
7BUCME153 ABB: Farm Duty Motor 1.5 Hp 208 V (UCME153)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5-3HP,3450RPM,3PH,60HZ,143TYZ,352
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCME153
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYE2501: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
UCME153
Gross Volume
3496.049 inÂł
Gross Weight
39 lb
Horsepower Rating UL/CSA
1.500 Hp | 3.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
1.5-3HP,3450RPM,3PH,60HZ,143TYZ,3524M,TE
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 1.5-3 HP, 3600 RPM, Frame Size 145Tyz, Standard Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TYZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp | 3 Hp
Power Factor
83 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
39 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.5 A | 8.2 A | 4.1 A
Rated Efficiency
80 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35E2501S057G1
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1.5-3 HP, 3600 RPM, Frame Size 145Tyz, Standard, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V | 460 V
Feature: TEAO enclosure and 145TYZ frame deliver robust, maintenance-friendly enclosure for continuous operation in dusty farm environments. Business Impact: Minimizes ingress-related wear and reduces cooling needs, boosting uptime. Application: Ideal for grain dryers and vane axial fans where outdoor, high-dust conditions are common. Feature: Wide voltage and 3-phase compatibility (208/230/460 V, 60 Hz) with 3450 r/min nominal speed. Business Impact: Flexible installations across multiple sites without custom rewiring, lowering total cost of ownership. Application: Grain-drying lines and ventilation systems that move air efficiently. Feature: NEMA design B, foot-mounted mounting, direct-on-line start, and 6206 sealed bearings. Business Impact: Simplified integration, safer startup, and reduced maintenance cycles. Application: Conveyor and air-handling assemblies in agricultural facilities. Feature: Insulation Class F and 40 °C ambient tolerance. Business Impact: Reliable operation in typical farm summer conditions, minimizing derating needs. Application: Continuous-duty fans and fans-on-dryers where temperature excursions occur. Feature: Rated current 8.5 A | 8.2 A | 4.1 A and power factor ~83%. Business Impact: Predictable electrical demand, easier panel design, and energy-conscious operation. Application: Systems with fixed-speed grain-dryer and heat-management loops. Feature: Stocked at multiple warehouses with 0-day lead time. Business Impact: Fast procurement and reduced downtime during peak season. Application: Quick replacement in grain handling and conditioning lines. Industry context: With CSA | UR certification, NEMA compatibility, and a rugged TEAO enclosure, UCME153 supports compliant, reliable, and cost-efficient farm automation projects while delivering tangible ROI through uptime, ease of installation, and extended motor life.
