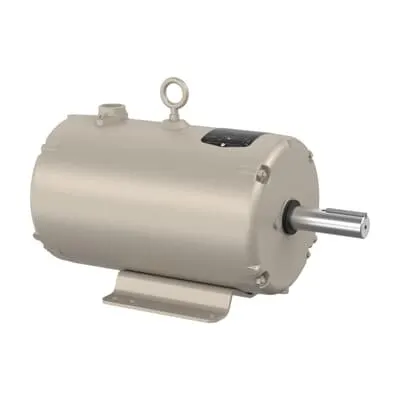

ABB 7BUCME7510 Farm Duty Motor - 10 HP 230V CSA/UR
Part Number: 7BUCME7510
Quick Summary
ABB 7BUCME7510 is a farm-duty motor for grain dryers and vane-axial fans. This 10 HP, three-phase unit delivers reliable performance in demanding agricultural environments while addressing common uptime challenges and maintenance costs. It carries CSA and UR certifications, RoHS compliance, and a NEMA design B profile, signaling regulatory alignment and robust electrical design. With 60 Hz operation and a TEAO enclosure, this motor supports consistent airflow and processing throughput, reducing downtime. In short, this is an industrial motor that combines durability with installation simplicity, helping facilities improve energy efficiency, reduce failure modes, and sustain high-volume grain processing operations.
Product Information
Extended Description
7BUCME7510 ABB: Farm Duty Motor 10 Hp 230 V (UCME7510)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5-10 AIR OVERHP,3450RPM,3PH,60HZ,
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
UCME7510
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYQ213: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
UCME7510
Gross Volume
5274.135 inÂł
Gross Weight
85 lb
Horsepower Rating UL/CSA
10.000 Hp | 7.500 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
7.5-10 AIR OVERHP,3450RPM,3PH,60HZ,184TZ
Made To Order
No
Medium Description
Grain Dryer/Vane Axial Fan, 7.5-10 HP, 3600 RPM, Frame Size 184Tz, Standard Mounting, 3 Phase, TEAO Enclosure, 230/460 V, 60 Hz (UCM
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp | 7.5 Hp
Power Factor
94 %
Product Name
Grain Dryer/Vane Axial Fan
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
85 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23 A | 11.5 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
7.5-10 HP, 3600 RPM, Frame Size 184Tz, Standard, 3 PH, TEAO, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEAO enclosure protects the windings from dust and ambient debris, lowering maintenance frequency and extending motor life; ideal for grain-dryer lines and vane axial fans in dusty facilities. Feature → Business Impact → Application: Frame size 184TZ with foot mounting provides straightforward installation on existing bases and tooling, reducing commissioning time and vibration risk in conveyors or aeration systems. Feature → Business Impact → Application: 3-phase, 60 Hz operation at 230/460 V enables direct-on-line starting and broad electrical compatibility, cutting soft-start requirements and enabling reliable startup in harvest-era processing. Feature → Business Impact → Application: Rated at 10 HP with a 3450 r/min nominal speed and 3600 r/min synchronous speed, delivering precise air movement and control for grain dryers and airflow fans while maintaining high efficiency. Feature → Business Impact → Application: RoHS compliant and NEMA design B specification ensure regulatory compliance and predictable performance across agricultural installations, reducing risk during audits and long-term operation. Feature → Business Impact → Application: Ready-to-ship stock from multiple warehouses (US and Asia regions) with 0-day lead time minimizes project delays, enabling just-in-time maintenance and rapid deployment in processing plants.
Get a Quick Quote for a ABB 7BUCME7510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BUCME7510?
Enquire Now
FAQs
Yes. The 7BUCME7510 is a 3-phase motor rated for 230/460 V at 60 Hz, designed for direct-on-line starting. This makes it suitable for standard agricultural electrical infrastructure and simplifies wiring and protection requirements in grain-drying and fan applications.
The motor uses a TEAO enclosure for dust-prone environments and is foot-mounted with a frame size 184TZ. This combination supports straightforward installation on existing bases and minimizes enclosure-related maintenance, ideal for grain dryers and vane axial fans.
The 7BUCME7510 carries CSA and UR certifications and is RoHS compliant, with a NEMA design B configuration. These certifications ensure regulatory acceptance, safer material compliance, and reliable performance in industrial environments.
Stock is available at multiple warehouses, including regions in the United States and internationally, with a 0-day lead time noted. This ensures rapid fulfillment for maintenance, replacement, or new installations in grain processing facilities.
With a rated 10 HP, 86.5% efficiency, and a 3450 r/min (3600 r/min synchronous) profile, the motor delivers strong air-moving performance and energy efficiency for farm documentation, reducing energy costs and enabling faster payback in grain-dryer and fan applications.
