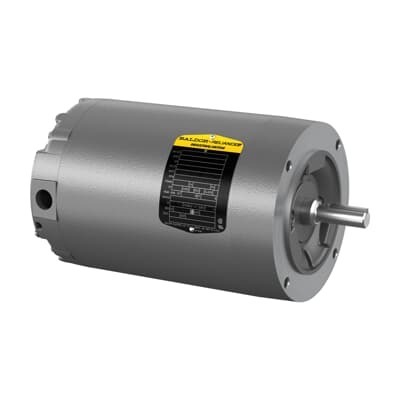

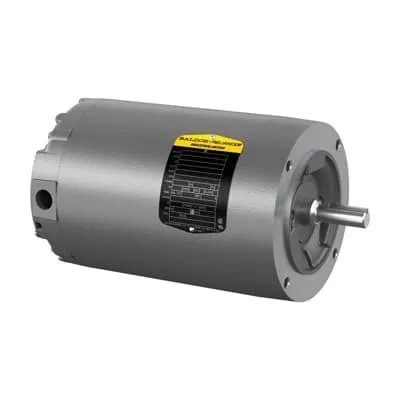

ABB VAOM3527 Air-Over Fan - 1 HP, 3PH, TEAO, 56C
Part Number: 7BVAOM3527
Quick Summary
ABB VAOM3527 Air-Over Fan delivers reliable cooling for industrial enclosures and equipment rooms. Designed for compact spaces, it tackles overheating in 208-230/460 V, 3-phase systems while fitting within a 56C frame footprint. With CSA and UR listings and a NEMA B design, it meets essential safety and performance standards for demanding environments. The TEAO enclosure and 1 HP rating enable straightforward installation, reduce downtime, and provide consistent airflow in control cabinets and machine enclosures. This combination supports OEMs and maintenance teams seeking dependable cooling with minimal integration risk.
Product Information
Extended Description
7BVAOM3527 ABB: Air-Over Fan 1 Hp 208 V (VAOM3527)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1 AIR OVERHP,865RPM,3PH,60HZ,56C,35
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VAOM3527
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYE2256: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VAOM3527
Gross Volume
3496.049 in³
Gross Weight
57 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
F
Invoice Description
1 AIR OVERHP,865RPM,3PH,60HZ,56C,3546M,T
Made To Order
No
Medium Description
Air-Over Fan, 1 HP, 900 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (VAOM3527)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
54 %
Product Name
Air-Over Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
57 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.5 A | 6.4 A | 3.2 A
Rated Efficiency
74 %
Rated Speed
850 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, 900 RPM, Frame Size 56C, C-Face, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
208 V | 230 V | 460 V
The VAOM3527 uses a TEAO enclosure with a 1 HP, 8-pole, 56C frame and 3-phase operation to deliver robust cooling in compact footprints, reducing enclosure heat load and enabling efficient control panel performance. This translates to lower system temperatures, improved component longevity, and energy-conscious operation in industrial environments where space is at a premium. The C-Face drive end flange and footless base offer versatile mounting options, simplifying retrofits and new installations while maintaining precise alignment for reliable airflow. With horizontal mounting and a 0.63 in shaft, paired with sealed bearings (6205), maintenance intervals are extended and vibration is minimized, supporting continuous production in packaging, material handling, and tooling applications. Stocked at multiple warehouses and supported by a 0-day lead time, procurement teams experience significantly faster rebuilds and reduced downtime. The motor’s NEMA B design, Insulation Class F, and CSA/UR listings reinforce regulatory compliance and safety in order-to-run environments, even in high-demand OEM setups. Flexible voltage support (208/230/460 V) further reduces inventory needs and simplifies configurability across global plants, enabling reliable cooling for industrial fans, machine enclosures, and control cabinets with minimal design changes.
