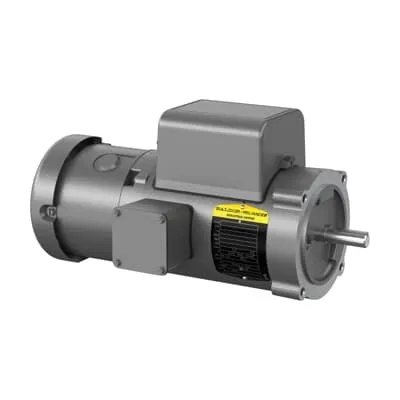

ABB 7BVBL3507 Short Series Brake - CSA/UR Certified
Part Number: 7BVBL3507
Quick Summary
ABB 7BVBL3507 Short Series Brake is a compact single-phase braking solution for 0.75 HP motors used in small to mid-size drive assemblies. It provides precise torque control at 60 Hz and 115/230 V, ideal for conveyors, packaging lines, and machinery where space is at a premium. Engineers often struggle with inconsistent braking, belt slippage, and unplanned downtime; this brake helps stabilize stopping performance and protect drivetrains. With CSA/UR certification and RoHS compliance, it aligns with essential safety and sustainability standards while fitting standard NEMA configurations. Its 56C frame, C-face mounting, and TEFC enclosure simplify integration with ABB Baldor-Reliance motors and other compatible drives, delivering faster installation, reduced wiring, and lower lifecycle costs. In short, it supports reliable uptime and predictable maintenance budgets for industrial automation projects.
Product Information
Extended Description
7BVBL3507 ABB: Short Series Brake 0.75 Hp 115 V (VBL3507)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56C,BRAKE,34
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
VBL3507
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYG457: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VBL3507
Gross Volume
3590.443 in³
Gross Weight
40 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.75HP,1725RPM,1PH,60HZ,56C,BRAKE,3428LC
Made To Order
No
Medium Description
Short Series Brake, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (VBL3507)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
78 %
Product Name
Short Series Brake
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
40 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
72 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B34G457Y094-C
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Compact power and versatility: The short series brake delivers 0.75 HP across 115/230 V, 60 Hz for single-phase motors. Business impact: Enables compact drive designs with consistent torque, reducing motor oversizing and wiring complexity. Application: Perfect for belt conveyors, packaging lines, and small centrifuges where space is limited. TeFC enclosure and 56C frame: Protection in harsh environments while fitting standard industrial footprints. Impact: Enhanced durability and simplified cabinet integration, lowering enclosure costs. Application: Suitable for demanding factory floors and compact drive assemblies. C-face drive end flange and horizontal mounting: Easy installation and minimal downtime. Impact: Faster commissioning and straightforward alignment with existing Baldor-Reliance systems. Application: Ideal for retrofit projects or new line builds. Service factor 1.25 and rated speed of 1725 r/min: Stable torque and reliable performance over the motor’s nominal range. Impact: Improved belt life, reduced wear, and better process control. Application: Conveyor, mixer, and packaging line applications with steady braking needs. RoHS compliant and CSA/UR certified: Regulatory alignment and supply chain resilience. Impact: Safer, compliant equipment with easier procurement. Application: Widely used in regulated environments requiring traceable conformity. Warranty and stock considerations: Product is designed for continuous operation with predictable replacement cycles. Impact: Reduces downtime risk and improves total cost of ownership. Application: Industrial OEMs seeking dependable braking for long-running drives.
