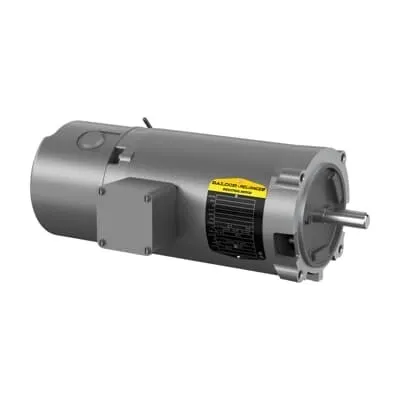

ABB 7BVBM3112 Unit Handling Motors - CSA UR
Part Number: 7BVBM3112
Quick Summary
ABB Unit Handling Motors 7BVBM3112 deliver compact, reliable 0.75 HP drives for material handling and automated warehousing. The open-frame 56C motor is designed for straightforward installation on conveyors and sorters, reducing integration time and field adjustments. Facilities often struggle with inrush, heat, and downtime; this motor’s direct-on-line start and robust 6203 ball bearings help minimize those issues in demanding lines. With CSA and UR safety certifications and alignment to NEMA standards, procurement and compliance are simplified for US-based projects. The 208/230/460 V options and 60 Hz operation enhance global compatibility, while a 1.25 service factor supports consistent performance under peak loads, delivering measurable uptime and throughput improvements.
Product Information
Extended Description
7BVBM3112 ABB: Unit Handling Motors 0.75 Hp 208 V (VBM3112)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
,RPM,0PH,HZ,56C,OPEN,F1,BRAKE
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance®
Catalog Number
VBM3112
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LY3093: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VBM3112
Gross Volume
3496.049 inÂł
Gross Weight
31 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
B
Invoice Description
,RPM,0PH,HZ,56C,OPEN,F1,BRAKE
Made To Order
No
Medium Description
Frame Size 56C, C-Face Mounting, 3 Phase, OPEN Enclosure, (VBM3112)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
64 %
Product Name
Unit Handling Motors
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
31 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 3 A | 1.5 A
Rated Efficiency
75.50 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
Frame Size 56C, C-Face, 3 PH, OPEN,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: The 56C frame with C-face mounting matches a broad catalog of standard drives and gearboxes, enabling quick swaps and low spare-part diversity. This reduces downtime and stocking costs while preserving torque and speed targets in belt conveyors. Feature → Business Impact → Application: Open enclosure design improves cooling and simplifies maintenance, lowering service time and allowing easier access during routine inspections on busy production floors. Feature → Business Impact → Application: 3-phase operation at 60 Hz with voltage options 208/230/460 V supports multi-site deployments, reducing inventory complexity and enabling harmonized electrical installations across plants. Feature → Business Impact → Application: Direct-on-line starting minimizes drive hardware and control complexity, delivering fast commissioning and lower initial cost for line-start applications like unit-handling conveyors. Feature → Business Impact → Application: Insulation class B, 6203 bearing, and shaft diameter 0.63 in contribute to longer bearing life and reduced maintenance cycles in continuous-duty lines. Feature → Business Impact → Application: 1.25 service factor and 0.75 HP rating provide reliable performance under peak loads, enhancing throughput on sorters and palletizing lines. Feature → Business Impact → Application: CSA/UR certifications and NEMA alignment simplify supplier qualification and regulatory compliance in North American facilities, aiding procurement and risk management. Industry-specific context: The 7BVBM3112’s combination of frame, mounting options, and open enclosure is well-suited for dynamic automation environments where standardization and interchangeability drive total cost-of-ownership down, while keeping maintenance predictable and budgets stable.
