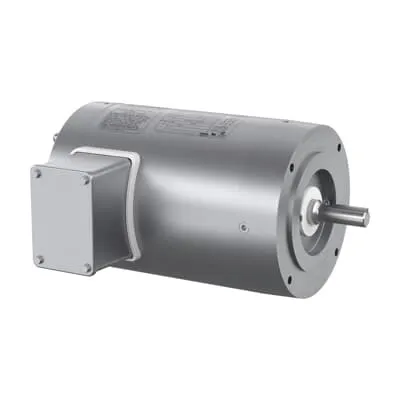

ABB 7BVBM3538-5S Unit Handling Motors - 0.5HP 575V CE/UR
Part Number: 7BVBM3538-5S
Quick Summary
Unit Handling Motors ABB 7BVBM3538-5S deliver compact, reliable drive solutions for automated material handling in conveyors and packaging lines. Engineers face space constraints, demanding duty cycles, and sourcing delays when selecting motors for these systems. This model carries CE, CSA and UR certifications with WEEE compliance, supporting regulatory readiness across regions. The 56C frame, TEFC enclosure, and 3-phase, 60 Hz performance enable straightforward installation and consistent operation in busy production cells, while a built-in brake and robust bearings enhance control and uptime across high-cycle applications. Partnering with this motor reduces maintenance costs and shortens lead times by aligning with standard Baldor-Reliance product families and stocked warehouses.
Product Information
Extended Description
7BVBM3538-5S ABB: Unit Handling Motors 0.50 Hp 575 V (VBM3538-5S)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
0.5HP,1770RPM,3PH,60HZ,56C,3512M,TE
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance®
Catalog Number
VBM3538-5S
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX055: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VBM3538-5S
Gross Volume
5274.135 in³
Gross Weight
42 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
0.5HP,1770RPM,3PH,60HZ,56C,3512M,TEFC,F3
Made To Order
No
Medium Description
Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, (VBM3538-5S)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.50 Hp
Power Factor
58 %
Product Name
Unit Handling Motors
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
42 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
0.8 A
Rated Efficiency
72 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35X055G200G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
Frame Size 56C, C-Face, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
TEFC enclosure protects windings from dust and moisture, extending service intervals and reducing unplanned downtime in demanding production environments. This translates to higher overall equipment effectiveness (OEE) and lower maintenance costs for conveyors and packaging lines that operate in mixed-spec environments. The 56C frame with C-face mounting and a footless base provides installation flexibility, simplifying retrofits and new-builds in constrained plants where alignment and space are at a premium. A 0.5 HP, 575 V, 3-phase, 60 Hz configuration delivers sufficient torque for unit handling duties, with a rated speed near 1740 r/min and a modest 0.8 A starting current, enabling straightforward drive selection and energy efficiency. The built-in brake supports precise stopping and load hold, reducing product push-off and mechanical wear on high-speed packaging workflows. NEMA design B, 72% rated efficiency, and a 1.15 service factor deliver reliable performance under continuous-duty conditions while keeping operating costs predictable. Compatibility with Baldor-Reliance product families and multiple stocked warehouses shortens lead times and simplifies maintenance planning for global operations. Installation and commissioning are further streamlined by direct-on-line starting and standard mounting configurations, minimizing engineering overhead during upgrades or replacements. This motor’s high-quality bearings (6205, Ball) and robust frame materials support long service life in industrial settings, making it a practical choice for conveyors, hoists, and other unit-handling equipment in manufacturing and logistics environments.
