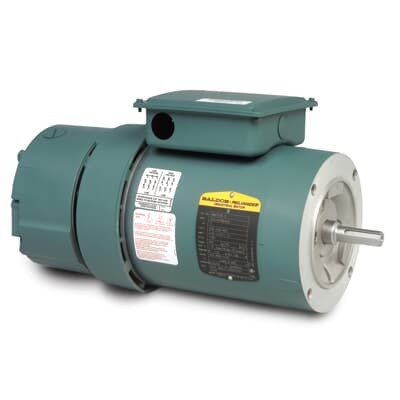

ABB 7BVBM3611T-D Unit Handling Motors - CE/CSA/UR
Part Number: 7BVBM3611T-D
Quick Summary
Unit Handling Motors are robust ABB drives designed to power conveyors, hoists, and other material handling applications with 460 V three-phase power. This model delivers reliable torque at 1,750 rpm and a 3 HP rating, suitable for demanding manufacturing environments. For engineers facing downtime, procurement delays, or non-standard mounting, the challenge is finding a durable, code-compliant motor that fits standard frames and mounting patterns. The product carries CE, CSA, and UR certifications to support regulatory compliance, while the TEFC enclosure and steel 182TC frame offer protection against dust and temperature fluctuations up to 40 °C. With United States origin and documented 0-day lead time, this motor supports fast procurement and predictable maintenance cycles for lean operations.
Product Information
Extended Description
7BVBM3611T-D ABB: Unit Handling Motors 460 V (VBM3611T-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,3PH,60HZ,182TC,3542M,TE
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance
Certification Agency
CE | CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Efficiency Level
2015 Small Motor Standard | Energy Efficiency (NEMA 12-11) | IE2
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VBM3611T-D
Gross Volume
6996 in³
Gross Weight
36.32 kg
Horsepower Rating UL/CSA
3.000 Hp
Invoice Description
3HP,1750RPM,3PH,60HZ,182TC,3542M,TEFC,F3
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
No Mounting
Motor Frame Size
182TC
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
78 %
Product Name
Unit Handling Motors
Product Net Depth / Length
67.31 cm
Product Net Height
40.64 cm
Product Net Weight
36.32 kg
Product Net Width
41.91 cm
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.1 ... 8.4 A | 4.2 A
Rated Efficiency
87.5 %
Rated Speed
1,750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China
UNSPSC
26101115
Voltage Rating
460 V | 230 V | 208 V
Feature: 3 HP power rating with 1,750 r/min speed for reliable throughput. Business Impact: Delivers consistent conveyor and lift performance while enabling compact, space-efficient layouts in automated lines. Application: Ideal for unit handling on assembly conveyors and pallet feeders. Feature: 460 V, 60 Hz, three-phase operation for standard industrial power. Business Impact: Maximizes torque delivery and uptime across high-demand cycles, reducing timing errors and stoppages. Application: Suitable for machine tenders and material-handling stations in modern factories. Feature: TEFC enclosure with steel 182TC frame. Business Impact: Provides robust enclosure protection against dust, moisture, and incidental contact, extending motor life in harsh environments. Application: Good fit for dusty warehousing, packaging lines, and outdoor-adjacent equipment. Feature: NEMA Design Code A and direct-on-line starting. Business Impact: Simplifies electrical infrastructure and reduces start-up time, lowering installation costs. Application: Direct motor connect on conveyors and hoist systems with minimal electrical hardware. Feature: IE2-rated efficiency (Rated Efficiency 87.5%). Business Impact: Lower energy consumption and operating costs over its life cycle, improving total cost of ownership. Application: Continuous-duty handling lines where energy codes apply. Feature: Service Factor 1.15 and 3-phase, 4-pole configuration. Business Impact: Enhanced overload tolerance and stable performance during peak loads, reducing equipment strain. Application: Heavy-load handling and peak-demand scenarios on automated lines. Feature: 182TC frame compatibility and Made To Order options (or lack thereof). Business Impact: Aligns with common mounting patterns and minimizes custom fabrication. Application: Retrofit projects and standard mill installations. Feature: Global branding as Baldor-Reliance within ABB family and CE/CSA/UR certifications. Business Impact: Assures cross-brand compatibility and regulatory alignment across North America. Application: International projects requiring proven compliance.Note: The product is stocked with a 0-day lead time at supplier locations, enabling rapid replacement during maintenance outages and enabling just-in-time spare parts strategies.
