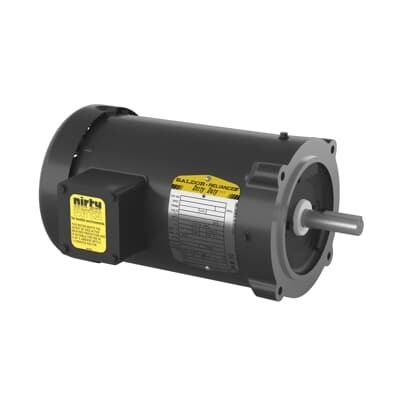

ABB 7BVDM3538 Severe Duty Motor - TEFC 56C, 3PH 60Hz CSA/UR
Part Number: 7BVDM3538
Quick Summary
ABB 7BVDM3538 Severe Duty Motor delivers reliable power for heavy-duty applications like conveyors and mixers. Built to endure dirty and demanding environments, this 0.5 HP motor keeps production lines running and reduces maintenance cycles. It features a TEFC enclosure, 56C frame, and 230/460 V 3-phase operation, ideal for rugged automation tasks in manufacturing and material handling. The design aligns with recognized industry standards and certifications to support safe operation in regulated facilities. For engineers and procurement teams, the value lies in proven durability, predictable performance, and straightforward installation that minimizes downtime and life-cycle costs. With a maximum speed of 1800 r/min synchronous and 1725 r/min rated speed, it delivers consistent torque across a wide load range.
Product Information
Extended Description
7BVDM3538 ABB: Severe Duty Motor 0.5 Hp 230 V (VDM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,3PH,60HZ,56C,3420M,TEF
Ambient Temperature
40 °C
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VDM3538
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LYM808: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VDM3538
Gross Volume
2110.969 inÂł
Gross Weight
28 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.5HP,1725RPM,3PH,60HZ,56C,3420M,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VDM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
69 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
28 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.8 A | 0.9 A
Rated Efficiency
75.50 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B34M808-0097G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: 0.5 HP, 1725 rpm, 3-phase performance provides reliable torque for mid-range loads on conveyors and mixers. Business impact: supports faster cycle times with consistent speed under variable loads, reducing process bottlenecks in automation lines. Application: ideal for material handling and packaging lines that require dependable, plug-and-play operation. Feature: TEFC enclosure and 56C frame offer rugged protection from dust, moisture, and contaminants. Business impact: lowers maintenance frequency and extends motor life in dirty plants. Application: suitable for dirty duty autophoretic environments and tough manufacturing floors. Feature: Flexible voltage (230/460 V) at 60 Hz and 3-phase operation enables cross-site deployment. Business impact: simplifies procurement and spare parts planning, reducing downtime during scale-up. Application: multi-site facilities with mixed electrical infrastructure. Feature: Electrical performance – Rated Current 1.8 A / 0.9 A, Power Factor 69%, Efficiency 75.50%. Business impact: improves energy efficiency and heat management, lowering operating costs over the motor’s life. Application: continuous-duty lines where temperature rise is a concern. Feature: Mechanical design including 56C frame, 0.63 in shaft, and Direct On Line starting. Business impact: straightforward installation, quick commissioning, and strong torque at start-up for heavy loads. Application: conveyors, mixers, and general automation machinery in assembly lines. Feature: Certifications and compliance (NEMA, CSA EEV, UR). Business impact: supports regulatory approvals and safe operation in regulated facilities. Application: industrial automation projects requiring robust safety certifications and standard-compliant components.
