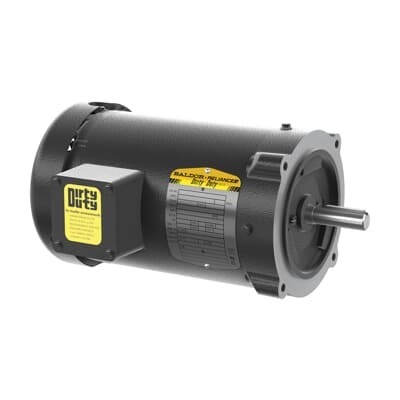

ABB 7BVDM3541 LV Severe Duty Motor - TEFC 56C
Part Number: 7BVDM3541
Quick Summary
ABB 7BVDM3541 LV Severe Duty Motor drives reliable, high-duty applications in conveyors, pumps, and general industrial equipment. Operators often struggle with downtime, excessive maintenance, and inconsistent performance in harsh environments. This motor is designed for continuous operation with North American accessibility and robust components. It carries notable certifications and construction features such as NEMA design B, TEFC enclosure, and insulation class F, supporting compliant, long-life operation. With a compact 56C frame and 0.75 HP output, it delivers strong business value, enabling easier integration into existing automation systems while optimizing energy usage and total cost of ownership.
Product Information
Extended Description
7BVDM3541 ABB: Severe Duty Motor 0.75 Hp 230 V (VDM3541)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,3PH,60HZ,56C,3418M,TE
Ambient Temperature
40 °C
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VDM3541
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LYM809: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
VDM3541
Gross Volume
2110.969 inÂł
Gross Weight
27 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,3450RPM,3PH,60HZ,56C,3418M,TEFC,F1
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, (VDM3541)
Minimum Order Quantity
1 piece
Motor Base Type
No Mounting
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
82 %
Product Name
LV Severe Duty Motors
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
27 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.4 A | 1.2 A
Rated Efficiency
72 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
Frame Size 56C, C-Face, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 0.75 HP, 230 V three-phase design delivers dependable torque for moderate-load tasks, reducing risk of stalls and improving line throughput in conveyors and pumps. This translates to measurable uptime gains and lower maintenance frequency for automation systems in material handling and process equipment. Feature → Business Impact → Application: TEFC enclosure and insulation class F provide superior protection against dust, moisture, and temperature, improving outdoor and dirty-room performance with lower enclosure-related failures. Application-wise, this is ideal for packaging lines and water-treatment feeders where ambient conditions can challenge equipment reliability. Feature → Business Impact → Application: 56C frame with 2-pole, 3450 r/min nominal speed supports compact installations and straightforward coupling to standard gearboxes, delivering predictable startup behavior and reduced coupling misalignment risks in automated lines. Feature → Business Impact → Application: Service Factor 1.25 and Direct On Line starting enable robust startup torque and high-load tolerance, minimizing soft-start wear and extending motor life during peak demand periods in fans and blowers. Feature → Business Impact → Application: Insulation Class F and 3-phase power reduce heat-related losses, contributing to energy efficiency and reducing cooling load in HVAC and process cooling loops. Feature → Business Impact → Application: Verified stock at multiple North American and international warehouses (US, GB, SG, CN) shorten lead times and improve procurement predictability for maintenance teams and new installations. The combination of NEMA compliance, 40 °C ambient tolerance, and 3-phase operation makes this motor a versatile choice for rugged industrial automation environments while supporting ROI through reduced downtime and maintenance frequency.
