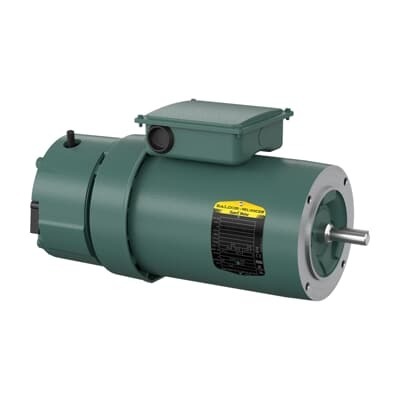

ABB 7BVEBM3546-D Unit Handling - IP44 IC411 1 HP
Part Number: 7BVEBM3546-D
Quick Summary
ABB 7BVEBM3546-D Unit Handling is a 1 HP, 1800 RPM motor ideal for unit handling on packaging and assembly lines. Designed to keep downtime to a minimum, the TEFC enclosure and sealed bearings withstand harsh industrial environments. Key certifications include CE and CSA with UR and IP44 protection and IC411 designation, helping you meet global and North American safety standards. Stocked at warehouses in the United States and internationally, procurement is fast and predictable, reducing lead times and accelerating maintenance cycles. Operating on 230/460 V at 60 Hz, the motor integrates smoothly with standard control panels and motor starters, delivering reliable performance without bespoke wiring.
Product Information
Extended Description
7BVEBM3546-D ABB: Unit Handling 1 Hp 230 V (VEBM3546-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1/.75 KWHP,1770 1/MIN IP44 IC411 22
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
VEBM3546-D
Certification Agency
CE | CSA | CSA EEV | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX145: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEBM3546-D
Gross Volume
3590.443 in³
Gross Weight
54 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1/.75 KWHP,1770 1/MIN IP44 IC411 22KGRPM
Made To Order
No
Medium Description
Unit Handling, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEBM3546-D)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
Unit Handling
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
54 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: TEFC enclosure with IP44 protection and sealed bearings. Business Impact: Extends motor life in dirty, dusty environments and reduces maintenance intervals, lowering total cost of ownership. Application: conveyors, automated packaging lines, and material handling systems. Feature: 56C frame with C-face mounting for easy compatibility with existing equipment. Business Impact: Simplifies installation, minimizes mounting modifications, and speeds up commissioning. Application: retrofit projects and new line builds in NC/SCADA-enabled plants. Feature: 230/460 V, 60 Hz three-phase operation. Business Impact: Direct compatibility with standard North American power systems reduces wiring complexity and control cabinet footprint. Application: control panels, VFDs, and motor starters on packaging and sorting lines. Feature: Efficiency and reliability metrics (IE3 premium, 85.50% rated efficiency, service factor 1.15). Business Impact: Lower energy consumption and longer motor life under continuous duty. Application: high-throughput conveyors and continuous operation processes. Feature: Robust mechanicals (0.63 in shaft, 56C frame, 54 lb weight, TEFC, 1 HP). Business Impact: predictable torque, easy handling, and proven reliability in demanding facilities. Application: line-mount conveyors, palletizers, and assembly feeders. Feature: Stocking and lead time (0 day lead time, multiple warehouses). Business Impact: Faster procurement cycles and reduced project delays. Application: urgent replenishment for maintenance and upgrades.
