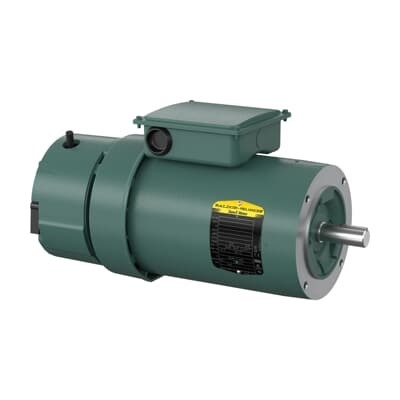

ABB VEBM3554T-D Unit Handling - NEMA Premium
Part Number: 7BVEBM3554T-D
Quick Summary
VEBM3554T-D unit handling delivers 1.5 HP, 230 V three-phase drive for automated material handling applications. Engineers often contend with startup surges, torque dips, and mounting constraints that can throttle line performance. This ABB motor carries CE, UKCA, and NEMA Premium certifications (with RoHS and WEEE compliance) to support regulatory conformity and long-term reliability. Built with a TEFC enclosure, 145TC frame, and C-face mounting, it installs quickly on conveyors, feeders, and packaging lines. Operating at 60 Hz with 1770 r/min and 230/460 V, the unit aligns with standard industrial controls while delivering energy-efficient, predictable performance for high-duty cycles and reduced maintenance.
Product Information
Extended Description
7BVEBM3554T-D ABB: Unit Handling 1.50 Hp 230 V (VEBM3554T-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,3524M,
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance®
Catalog Number
VEBM3554T-D
Certification Agency
CE | CURUSEEV | NEMA_PREMIUM | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYX050: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VEBM3554T-D
Gross Volume
3590.443 inÂł
Gross Weight
58 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,3524M,TEFC
Made To Order
No
Medium Description
Unit Handling, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEBM3554T-D)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
72 %
Product Name
Unit Handling
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
58 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
TeFC enclosure and a rugged steel frame provide durable protection against dust, moisture, and ambient contaminants, reducing enclosure ingress and unplanned downtime. For continuous operation in automated lines, this translates to longer motor life and lower maintenance costs. It is well suited to conveyors, feeders, and packaging lines where harsh plant conditions are common. The 1.5 HP, 1770 rpm, 3-phase design delivers steady torque and predictable acceleration, tightening control of line speeds and reducing peak current demands. This translates to higher throughput and smoother startup in manufacturing equipment. It integrates with standard VFDs or direct-on-line starters on conveyors, robots, and packaging machines. High efficiency at IE3 Premium (86.5%) with a power factor around 0.72 lowers energy consumption across a busy plant. That means measurable savings over the motor’s life and easier compliance with energy regulations and RoHS/WEEE requirements. The combination supports cost-per-ton improvements in continuous-duty applications. The built-in brake option enables precise load positioning and secure stops when power is removed, reducing drift on conveyors and hoist-like lines. This feature boosts safety and productivity in material handling and automated assembly cells. It pairs well with 60 Hz supply and provides consistent performance across 230/460 V installations. Dual voltage rating of 230/460 V simplifies stocking and cross-site deployment, minimizing spare parts and enabling quick line changes. The motor’s RoHS compliance further supports sustainable manufacturing and regulatory alignment. Horizontal mounting with a C-face drive end flange allows straightforward installation on standard frames, while the 145TC frame size fits a broad range of mechanical couplings and belts. With broad stock across U.S. and international warehouses, you can expect reduced lead times and reliable supply for critical automation projects.
