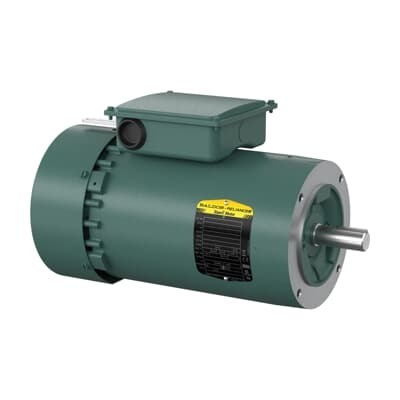

ABB 7BVEBM3554T-S Short Series Brake - CE/CSA/UR
Part Number: 7BVEBM3554T-S
Quick Summary
ABB 7BVEBM3554T-S Short Series Brake is a compact braking solution for 1.5 HP motors in 3-phase, 60 Hz systems, enabling precise stop-and-hold in conveyors and machine tools. Engineers face downtime from mis-timed stops and brake failures in dirty environments; this brake’s TEFC enclosure and C-face mounting address those challenges with robust reliability. It carries certifications including CE, CSA, and UR (with CSA EEV and WEEE listings), supporting regulatory compliance across North American and global plants. Stocked in a ready-to-ship 145TC frame, 230/460 V variant, it reduces lead times and simplifies maintenance planning for maintenance teams and OEMs. This translates to lower downtime costs and improved line throughput.
Product Information
Extended Description
7BVEBM3554T-S ABB: Short Series Brake 1.5 Hp 230 V (VEBM3554T-S)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,3524M,
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
VEBM3554T-S
Certification Agency
CE | CSA | CSA EEV | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYX067: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VEBM3554T-S
Gross Volume
3590.443 inÂł
Gross Weight
54 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,3524M,TEFC
Made To Order
No
Medium Description
Short Series Brake, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEBM3554T-S)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Short Series Brake
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
54 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Robust brake performance starts with the 1.5 HP rating and dual voltage capability of 230/460 V at 60 Hz. This combination yields predictable torque and reliable stopping, reducing cycle times on conveyors and machine tools. In practice, you gain tighter control over deceleration, less belt wear, and safer shutdowns on high-speed lines. TEFC enclosure and a 145TC frame offer rugged protection in dirty industrial environments while keeping installation straightforward. The C-face drive-end mounting aligns with standard Baldor-Reliance motors, enabling quick integration and fewer custom brackets. This design minimizes vibration-induced wear and ensures dependable brake actuation in demanding plants. Operating at 1.5 HP with a rated speed of 1770 r/min and a synchronous speed of 1800 r/min, the brake supports continuous duty without overloading the motor. A power factor of 0.72 and efficiency of 86.5% contribute to lower system energy use, yielding tangible operating-cost savings over time. Stocked at multiple warehouses and supported by 0-day lead times, procurement becomes predictable and project timelines accelerate. Maintenance teams benefit from consistent availability and straightforward spares, aided by dimensional data and installation references such as the Dimension Diagram and dimensions for shaft and mounting. CE, CSA, CSA EEV, UR, and WEEE certifications provide regulatory assurance for global deployments, audits, and end-of-life planning. These standards simplify cross-border sourcing and warranty administration for system integrators and OEMs. Addressing common objections, this ABB solution offers a turnkey package with in-stock availability and clear warranty terms, reducing total cost of ownership and improving line uptime in automation applications.
