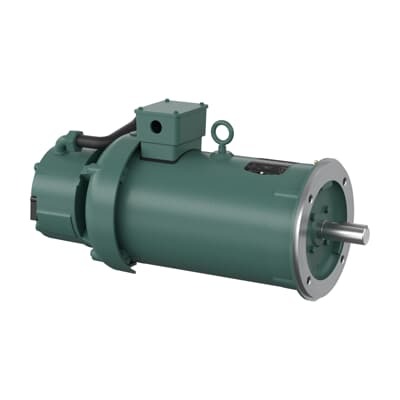

ABB 7BVEBM3611T-D Unit Handling - CE/NEMA Premium
Part Number: 7BVEBM3611T-D
Quick Summary
The 7BVEBM3611T-D Unit Handling motor is a 3 HP, 230/460V, 60 Hz three-phase drive designed for unit handling in automation lines. Engineers often struggle to source a compliant, energy-efficient motor that fits dual voltage needs and TEFC mounting in compact spaces. This model carries CE, UKCA, and NEMA Premium efficiency certifications, plus CURUSEEV and WEEE compliance, enabling multinational deployments. With IE3-rated efficiency, direct-on-line starting, and a robust 182TC frame, it delivers lower lifecycle costs while meeting safety and reliability standards. Stocked across key warehouses and supported by a global supplier network, it facilitates fast procurement for OEMs and maintenance teams.
Product Information
Extended Description
7BVEBM3611T-D ABB: Unit Handling 3 Hp 230 V (VEBM3611T-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,3632M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance®
Catalog Number
VEBM3611T-D
Certification Agency
CE | CURUSEEV | NEMA_PREMIUM | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYN149: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VEBM3611T-D
Gross Volume
7192.91 inÂł
Gross Weight
101 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F3
Made To Order
No
Medium Description
Unit Handling, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEBM3611T-D)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
Unit Handling
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
101 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B36N149S266G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Dual voltage 230/460 V, 60 Hz supports flexible power automation integration; Business Impact: simplifies plant-wide deployment and retrofit projects across multiple locations; Application: conveyors and material-handling lines. The TEFC enclosure and 182TC frame protect the rotor in dusty or humid environments; Business Impact: reduces downtime and cleaning cycles; Application: automated packaging and manufacturing floors. IE3 Premium efficiency (89.5%) and a 1.15 service factor lower operating costs; Business Impact: improves energy intensity metrics and reduces bill-of-materials; Application: continuous-duty drives in production lines. NEMA Design B, 4-pole configuration delivering 1760 r/min; Business Impact: predictable torque and smooth starting for speed-controlled conveyors; Application: drive systems and sorting equipment. Direct-on-line starting minimizes control hardware and startup delays; Business Impact: lowers installation time and maintenance costs; Application: simple, reliable line-start for automation cells. The 1.13 in shaft, 101 lb mass, and C-face horizontal mounting streamline installation and alignment; Business Impact: minimizes integration time and vibration issues; Application: retrofits and new line setups. Global stocking (US, DE, CN, AL, AK) supports rapid procurement and local service; Business Impact: reduces lead times and logistics costs; Application: multinational OEM projects and spare-parts strategy.
