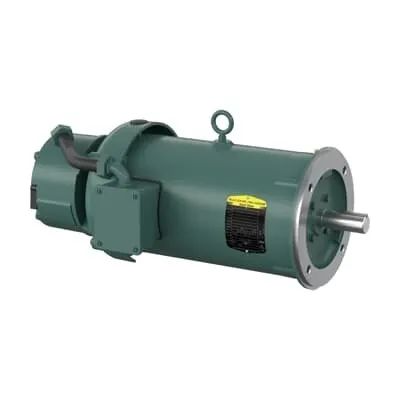

ABB 7BVEBM3615T-D Unit Handling - IE3/TEFC Enclosure
Part Number: 7BVEBM3615T-D
Quick Summary
Unit Handling for 5 HP motors streamlines integration in automated material handling and packaging applications. Engineers often confront tight spaces, variable voltages, and the need for reliable, low-maintenance motors in demanding plant environments. This ABB design carries CE, CSA, CSA EEV, UR, and WEEE certifications, and features a TEFC enclosure with Premium IE3 efficiency to support compliance and energy savings. With a 184TC frame, C-face mounting, and 60 Hz operation, it fits standard industrial platforms while simplifying sourcing and spare parts. Stocked at multiple warehouses with 0-day lead times, the unit enables fast procurement and predictable uptime for continuous-duty operations while reducing total cost of ownership.
Product Information
Extended Description
7BVEBM3615T-D ABB: Unit Handling 5 Hp 230 V (VEBM3615T-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1755RPM,3PH,60HZ,184TC,3642M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
VEBM3615T-D
Certification Agency
CE | CSA | CSA EEV | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYM111: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
VEBM3615T-D
Gross Volume
7192.91 inÂł
Gross Weight
117 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
5HP,1755RPM,3PH,60HZ,184TC,3642M,TEFC,F1
Made To Order
No
Medium Description
Unit Handling, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEBM3615T-D)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Unit Handling
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
117 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B36M111Q032G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: IE3 efficiency delivers lower energy consumption and reduced operating costs. Business Impact: Lower electricity bills and regulatory alignment for energy programs. Application: Suitable for high-duty cycles in conveyors and packaging lines where every watt counts. Feature: TEFC enclosure and 184TC frame provide rugged protection against dust, moisture, and harsh ambient conditions. Business Impact: Longer service life and less maintenance downtime. Application: Ideal for manufacturing floors with exposure to oils and coolants. Feature: 3-phase operation at 60 Hz with 230/460 V rating ensures versatility across regional power systems. Business Impact: Simplified electrical planning and faster installation. Application: Adaptable to global facilities with standard power distribution. Feature: Brake present supports safe, controlled deceleration and load retention. Business Impact: Improved line safety and process reliability. Application: Critical for automated pick-and-place and stackers. Feature: Stocked at multiple warehouses with 0-day lead times reduces lead-time risk. Business Impact: Faster fulfillment and reduced stockouts. Application: Critical for project timelines and spare-part readiness. Feature: Frame 184TC, NEMA B design, and direct-on-line starting enable straightforward installation. Business Impact: Reduced total upfront cost and simplified maintenance. Application: Common in continuous-duty automation where uptime matters. Feature: Rated speed 1755 r/min and synchronous speed 1800 r/min provide precise motor performance. Business Impact: Predictable speed control for synchronized conveyors. Application: Key for packaging lines and material handling where timing matters.
