ABB 7BVEBM3710T-D Unit Handling - CE/CSA Certified
Part Number: 7BVEBM3710T-D
Quick Summary

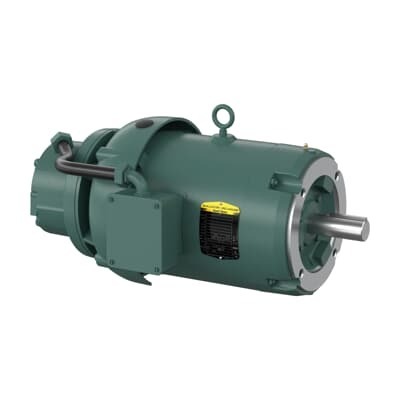

Unit Handling motor ABB 7BVEBM3710T-D delivers 7.5 HP, 230 V three-phase power for reliable material handling in conveyors, hoists, and automation lines. Engineered to minimize downtime, it helps reduce maintenance costs in warehouses, assembly lines, and cross-docking facilities. Certified CE, CSA, and NEMA PREMIUM provide global compliance and energy efficiency assurances. Backed by 0-day lead time availability and BOM-level compatibility, it accelerates project timelines and reduces total cost of ownership. Designed for 60 Hz operation with TEFC enclosure and 213TC frame, this motor supports consistent performance across US and international facilities. This Direct on Line capable design simplifies electrical design, while the 4-pole design enables reliable startup with low harmonic impact. This combination supports scalable automation projects in manufacturing, warehousing, and packaging.
Product Information
Extended Description
7BVEBM3710T-D ABB: Unit Handling 7.50 Hp 230 V (VEBM3710T-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213TC,3738M,
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
Yes
Brand / Label
Baldor-Reliance®
Catalog Number
VEBM3710T-D
Certification Agency
CE | CSA | NEMA_PREMIUM | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYM909: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
VEBM3710T-D
Gross Volume
13438.538 inÂł
Gross Weight
151 lb
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Made To Order
No
Medium Description
Unit Handling, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEBM3710T-D)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
80 %
Product Name
Unit Handling
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Weight
151 lb
Product Net Width
17.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B37M909L864G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 7.5 HP, 230 V, three-phase at 60 Hz. Business Impact: Delivers reliable torque with efficient operation and smooth startups, reducing peak electrical demand. Application: Ideal for unit handling on conveyors, sorters, and packaging lines in industrial facilities. Feature: TEFC enclosure + 213TC frame. Business Impact: Robust protection in dirty or dusty environments, increasing mean time between failures and lowering maintenance costs. Application: Suitable for washing-down areas and harsh production floors. Feature: C-Face drive end flange, 3‑phase horizontal mounting (F1). Business Impact: Easy integration with existing drivetrains and quick field service, shortening installation times. Application: Aligns with standard belt drives and gear reducers in material-handling setups. Feature: Premium efficiency (91.70%) and 7.50 Hp output. Business Impact: Lower energy consumption and improved overall equipment efficiency (OEE). Application: Long-running conveyors and automated lines seeking energy savings. Feature: Direct-on-line starting, 4-pole design, 60 Hz. Business Impact: Simplified electrical design, reduced soft-start requirements, and reliable start-up under continuous duty. Application: Continuous-duty unit handling across warehouses, manufacturing lines, and packaging operations.
