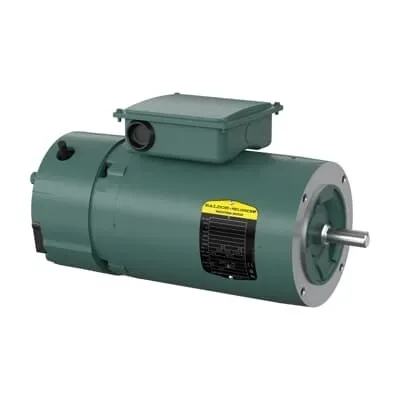

ABB 7BVEBNM3554-D D-Series Brake - CSA UR
Part Number: 7BVEBNM3554-D
Quick Summary
ABB 7BVEBNM3554-D D-Series Brake provides reliable braking for 1.5 HP motors in industrial drive systems. When downtime or misoperation threatens uptime, you need a dependable brake that integrates quickly with minimal wiring and setup. Certified for CSA, CSA EEV, and UR, this brake meets North American electrical-safety standards while supporting compliant motor control. Designed for 3-phase, 60 Hz systems at 230/460 V, its rugged 56C frame and TENV enclosure help you optimize service life and reduce total cost of ownership. Ideal for conveyors, machine tools, and packaging lines, it supports straightforward installation in both retrofit and new builds. This product ships stocked from multiple warehouses with zero lead time, enabling faster project delivery.
Product Information
Extended Description
7BVEBNM3554-D ABB: D-Series Brake 1.5 Hp 230 V (VEBNM3554-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56C,3530M,TE
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
VEBNM3554-D
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEBNM3554-D
Gross Volume
3590.443 in³
Gross Weight
61.7 lb
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56C,3530M,TENV,F3
Made To Order
No
Medium Description
D-Series Brake, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VEBNM3554-D)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
D-Series Brake
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
61.7 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
The 7BVEBNM3554-D offers a 1.5 HP braking solution for 230/460 V, 60 Hz three-phase motors, delivering consistent braking torque and fast response to reduce cycle times and belt slip in automation lines. Its compact footprint supports streamlined panel design and lower overall system cost, making it ideal for conveyors and machine tools where precise stop-and-hold is essential. The 56C frame with C-Face drive end flange and horizontal mounting (F3) simplifies retrofit projects and new builds, enabling quick alignment with standard Baldor/ABB motors and minimizing field rework. TENV enclosure and insulation class H provide durable operation in typical factory environments, while CSA, CSA EEV, and UR certifications support compliant procurement for North American OEMs. Rated speed of 1770 r/min (1800 r/min synchronous) and 86.5% efficiency translate to reliable performance with lower energy per stop. Stocked at warehouses with 0 day lead time supports fast project execution, reducing downtime and improving ROI for industrial automation and packaging lines. With a 0.63 in shaft diameter and a weight around 61.7 lb, the brake integrates with standard drive assemblies without heavy modification, and its 56C frame size aligns with common motor bases, minimizing custom fabrication. Direct On Line starting capability and 3-phase compatibility further reduce installation complexity, helping maintenance teams achieve predictable, repeatable stops across demanding production cycles.
Get a Quick Quote for a ABB 7BVEBNM3554-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEBNM3554-D?
Enquire Now
FAQs
Yes. The 7BVEBNM3554-D is designed for 56C frame motors and 3‑phase power at 230/460 V and 60 Hz. It uses a C-Face drive end flange and horizontal mounting (F3), enabling straightforward retrofit or new-build installation with minimal rework and wiring. Ensure the motor shaft diameter (0.63 in) matches your coupling to achieve optimal braking torque.
Key specs include 1.5 HP output, rated current of 4.6 A / 2.3 A, and rated speed of 1770 r/min with a synchronous speed of 1800 r/min. It operates on 230/460 V, 60 Hz, and features a 56C frame with a TENV enclosure and insulation class H, providing reliable thermal performance in typical factory environments.
This brake excels on conveyors, machine tools, and packaging lines where controlled stopping and holding are critical. Its compact form, robust mounting options, and 0-day lead time stock make it ideal for both retrofit projects and new automation builds requiring fast delivery and predictable stop performance.
The brake carries CSA, CSA EEV, and UR certifications, ensuring compliance with North American electrical safety standards. This simplifies procurement for OEMs and minimizes regulatory risk in end-user installations.
Warranty terms state that product under warranty must be returned. With stock available across multiple warehouses and 0-day lead time, project delays are minimized, improving uptime and total cost of ownership. Regular inspection of the shaft and brake apply torque can extend service life and protect investment in automated equipment.
