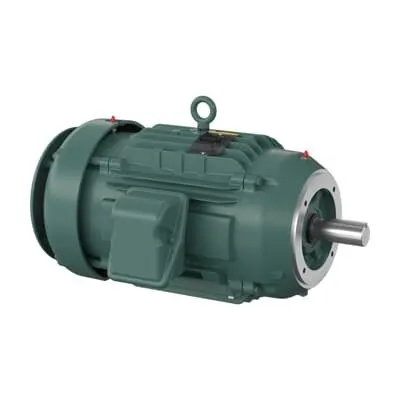

ABB VECP2333T Severe Duty Motor - NEMA Premium
Part Number: 7BVECP2333T
Quick Summary
Severe Duty Motor VECP2333T from ABB delivers high-torque, reliable performance for demanding industrial drives. This 15 HP, 230/460 V three-phase motor is built for continuous duty in heavy manufacturing, pumps, and material handling where downtime is costly. For engineers facing frequent maintenance, the rugged TEFC enclosure, 254TC frame, and C-face mounting simplify installation and reduce service time. The motor meets NEMA Premium efficiency standards and CSA EEV with UR recognition, supporting energy compliance and utility rebates. With a 0-day lead time and stock at multiple warehouses, it supports lean procurement and fast deployment, while the 1.15 service factor and F insulation class provide a resilient solution for harsh environments. In short, it blends reliability, efficiency, and installation ease for real-world ROI.
Product Information
Extended Description
7BVECP2333T ABB: Severe Duty Motor 15 Hp 230 V (VECP2333T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254TC,0944M,T
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VECP2333T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
09LYH181: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
VECP2333T
Gross Volume
14448.906 in³
Gross Weight
314 lb
Horsepower Rating UL/CSA
15.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,254TC,0944M,TEFC,F
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 15 HP, 1800 RPM, Frame Size 254Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VECP2333T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
254TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
84 %
Product Name
Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
314 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36.2 A | 18.1 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B09H181T597
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 254Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature dual voltage capability (230 V / 460 V) → Business Impact: simplifies global deployment and reduces SKU proliferation; Application: multi-region OEM lines and facilities. Feature Premium Efficiency (92.4%) → Business Impact: lowers energy costs and improves sustainability reporting; Application: conveyors, pumps, fans in continuous-duty environments. Feature TEFC enclosure on a 254TC frame → Business Impact: rugged protection in harsh manufacturing settings; Application: metalworking, processing, and packaging lines. Feature C-Face mounting and horizontal, footless design → Business Impact: flexible installation and compact footprints; Application: retrofit projects and OEM equipment where space is at a premium. Feature Insulation Class F and Temperature Class T3C → Business Impact: extended motor life under higher ambient temperatures; Application: lines operating in warm plants or near heat sources. Feature Service Factor 1.15 and direct-on-line starting → Business Impact: higher reliability under peak loads with simpler startup; Application: demanding drives where peak torque is required. Certifications (NEMA Premium, CSA EEV, UR) → Business Impact: regulatory compliance and access to utility incentives; Application: North American facilities with strict energy and safety standards. Weight and dimensions (314 lb, 31 in length, 19.625 in height, 23.75 in width) → Business Impact: predictable space planning and mounting clearance; Application: design-in for control panels and gear reducers. Replaced product ID 7B09H181T597 → Business Impact: proven compatibility in legacy motor programs; Application: long-term maintenance planning and part standardization.
