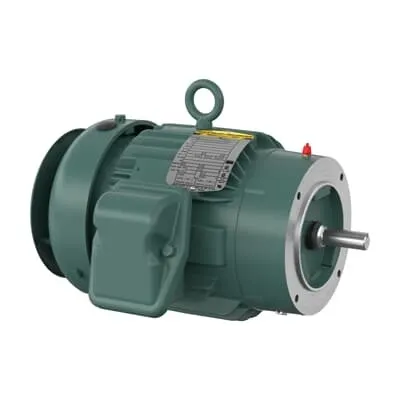

ABB VECP3581-4 Severe Duty Motor - 1HP 460V TEFC
Part Number: 7BVECP3581-4
Quick Summary
ABB VECP3581-4 Severe Duty Motor is a 1 HP, 460 V three‑phase drive designed for demanding industrial environments such as conveyors, pumps, and mixers. Its rugged TEFC enclosure and 56C frame deliver reliable, long‑life operation where uptime matters. This motor is engineered for continuous duty with premium efficiency, minimizing energy costs and thermal stress on equipment. Certified for NEMA design, with CSA/UR marks and IE3 efficiency, it supports compliant, maintenance‑friendly operation across North American manufacturing sites. With fast availability and proven interchangeability against similar motor footprints, it helps engineers reduce replacement lead times while preserving system performance and uptime commitments.
Product Information
Extended Description
7BVECP3581-4 ABB: Severe Duty Motor 1 Hp 460 V (VECP3581-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1775RPM,3PH,60HZ,56C,0524M,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VECP3581-4
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
05LYF005: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VECP3581-4
Gross Volume
3496.049 in³
Gross Weight
66 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1775RPM,3PH,60HZ,56C,0524M,TEFC,F1,N
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (VECP3581-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
72 %
Product Name
Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
66 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.5 A
Rated Efficiency
87.50 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B05F005X611G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T4
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature → Business Impact → Application: The 3-phase, 460 V configuration ensures consistent power delivery and compatibility with standard plant electrical infrastructure, reducing wiring complexity and startup time for new or replacement motors in production lines. This translates to lower commissioning costs and faster ROI on new machinery. The TEFC enclosure provides excellent dust and moisture protection, extending bearing life and minimizing unplanned maintenance in dusty environments such as material handling or blending operations. The 56C frame and 1 HP rating offer a compact footprint with robust torque characteristics, enabling seamless integration into tight spaces on packaging lines and small pumps stations. The motor’s footless base and C-Face drive end mounting simplify retrofits and mechanical upgrades, accelerating installation in reconditioned equipment. IE3 premium efficiency supports energy reduction programs, delivering measurable annual savings on large‑volume electric drives. The motor’s rated current of 1.5 A and 0.63 in shaft diameter facilitate straightforward electrical and mechanical sizing for legacy systems, while the NEMA design B profile provides predictable starting torque and performance under load, reducing vibration and wear in conveyors and fans. Stocked at multiple warehouses and a 0 day lead time capability enables rapid supply chain responsiveness for replacement scenarios and critical spares planning. Real-world integration insights show the VECP3581-4 harmonizes with existing Baldor‑Reliance drive sets, minimizing calibration efforts and enabling straightforward serviceability by in‑house maintenance teams.
