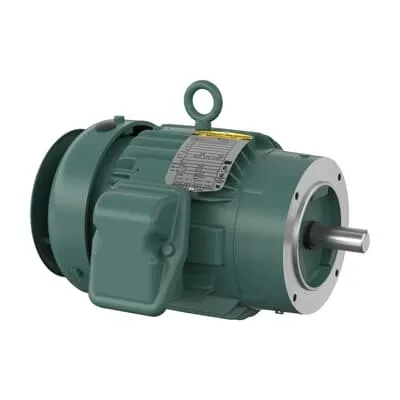

ABB VECP3586T-4 Severe Duty Motor - IE3 Premium
Part Number: 7BVECP3586T-4
Quick Summary
ABB VECP3586T-4 is a rugged 2 HP severe-duty motor designed for demanding industrial drives and conveyors. This model helps engineers avoid downtime caused by overloads, overheating, and mismatched duty cycles. It combines IE3 premium efficiency, a TEFC enclosure, and NEMA Design B construction with robust USA-origin reliability and CSA/UR certifications for compliant operation. Sourced from multiple warehouses with 0-day lead time, it supports rapid deployment on continuous production lines. With a 60 Hz, 460 V, 3-phase footprint and 145TC frame, this motor delivers predictable performance, easy maintenance, and a lower total cost of ownership for harsh manufacturing environments.
Product Information
Extended Description
7BVECP3586T-4 ABB: Severe Duty Motor 2 Hp 460 V (VECP3586T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,3PH,60HZ,145TC,0532M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VECP3586T-4
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
05LYF006: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VECP3586T-4
Gross Volume
3496.049 in³
Gross Weight
74 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,3450RPM,3PH,60HZ,145TC,0532M,TEFC,F1
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Severe Duty, 2 HP, 3600 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (VECP3586T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
85 %
Product Name
Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
74 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.5 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B05F006W090G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 3600 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T4
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: 2 HP, 460 V three-phase rating with a 2-pole design. Business Impact: Delivers compact power density and reliable torque for high-load applications while keeping energy use reasonable. Application: Ideal for conveyors and pumps in packaging and automotive assembly lines. Feature: IE3 premium efficiency rating. Business Impact: Reduces energy costs over the motor’s life and supports sustainability goals. Application: Continuous-duty drives across manufacturing floors. Feature: TEFC enclosure and 145TC frame. Business Impact: Enhanced protection against dust, moisture, and contaminants with straightforward installation. Application: Harsh factory floors and outdoor-rated facilities. Feature: NEMA Design B, Insulation Class F, Service Factor 1.15. Business Impact: Smooth startup behavior, overload tolerance, and long-term reliability. Application: Mixed-load process lines with varying start/stop cycles. Feature: Direct On Line starting and 0 day lead time stock. Business Impact: Simplified commissioning and near-immediate availability minimizes downtime. Application: Critical lines requiring fast swap-ins in continuous manufacturing. Feature: Explosion-proof capability (Class I, Group A-D) and CSA/UR certifications. Business Impact: Enables safe operation in hazardous environments with regulatory compliance. Application: Chemical, refining, or mining facilities. Industry context: The combination of rugged construction, high efficiency, and rapid availability aligns with industry expectations for heavy-duty, long-life motors in demanding production environments.
Get a Quick Quote for a ABB 7BVECP3586T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVECP3586T-4?
Enquire Now
FAQs
Yes. VECP3586T-4 uses a 145TC frame with TEFC enclosure and C-Face mounting, supporting straightforward direct replacement in compatible 3-phase, 460 V systems. It is designed for 60 Hz operations and Direct On Line starting, reducing retrofit complexity while maintaining alignment with existing belts, pulleys, and couplings.
Key specs include 2 HP output, 460 V, 3-phase, 60 Hz, 2-pole, rated current 2.5 A, and service factor 1.15. It carries IE3 premium efficiency, insulation class F, and a TEFC enclosure, ensuring reliable performance under demanding loads and improved energy efficiency over baseline motors.
The VECP3586T-4 excels in continuous-duty drives like conveyors, pumps, and fans in automotive, packaging, and general manufacturing. Its rugged construction, compliance certifications, and hazardous-area explosion-proof rating make it suitable for both cleanroom-adjacent processes and harsh industrial environments.
The motor carries CSA US/CSA EEV/UR certifications and 60 Hz operation, with explosion-proof Class I, Group A-D classification. This combination supports regulatory compliance in diverse facilities and enables safe integration in hazardous environments when permitted by local codes.
With stock stored at multiple warehouses and a 0-day lead time, uptime is maximized through rapid replacements. The warranty policy requires warranty returns for covered defects, helping protect investment while minimizing total cost of ownership over the motor’s life cycle.
