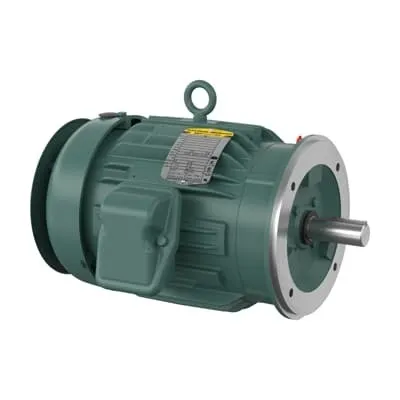

ABB VECP3667T Severe Duty Motor - IE3 Premium
Part Number: 7BVECP3667T
Quick Summary
ABB VECP3667T is a 1.5 HP, three-phase severe-duty motor designed for demanding industrial applications such as conveyors, pumps, and mixers. Built for reliability in harsh environments, it helps reduce unplanned downtime and maintenance costs. The design embraces premium efficiency and robust protection to maximize uptime in continuous operation. Key certifications—IE3 Premium Efficiency, TEFC enclosure, and multi-agency approvals (CSA/UL/UR)—ensure compliance across global install bases. For maintenance teams and procurement, the VECP3667T offers straightforward installation, standard stock at multiple warehouses, and flexible voltage options (208/230/460 V) to simplify integration with existing drives and control systems. This translates to lower total cost of ownership and faster project delivery.
Product Information
Extended Description
7BVECP3667T ABB: Severe Duty Motor 1.5 Hp 208 V (VECP3667T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1170RPM,3PH,60HZ,182TC,0630M,
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VECP3667T
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYH480: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VECP3667T
Gross Volume
5274.135 in³
Gross Weight
107 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1170RPM,3PH,60HZ,182TC,0630M,TEFC
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Severe Duty, 1.5 HP, 1200 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (VECP3667T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
65 %
Product Name
Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
107 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.2 A | 5 A | 2.5 A
Rated Efficiency
87.50 %
Rated Speed
1170 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
1.5 HP, 1200 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature: Premium IE3 efficiency → Business Impact: Lower energy consumption and operating costs over the motor's lifecycle → Application: conveyors, pumps, fans, and material-handling equipment in manufacturing. Feature: TEFC enclosure and rugged 182TC frame → Business Impact: Enhanced protection from dust, moisture, and washdown, reducing maintenance frequency → Application: harsh production floors, outdoor installations, and demanding assembly lines. Feature: 182TC frame, C-Face mounting, 3-phase, 60 Hz, 208/230/460 V → Business Impact: Easy bolt-on fit with standard VFDs and starters, minimizing installation time and errors → Application: line drives, packaging equipment, and process machinery. Feature: 6206 ball bearings, insulation class F, 60 min duty → Business Impact: Longer bearing life and better insulation resistance → Application: continuous-duty operation under heavy loads. Feature: Certifications (IE3, CSA/UL/UR) → Business Impact: Global compliance reduces certification overhead and accelerates deployment → Application: multinational plants and regulated industries. Feature: Stock and lead times (0 day lead time, multiple warehouses) → Business Impact: Faster procurement and reduced project delays → Application: project commissioning and spare-part planning. This combination supports measurable uptime gains, energy savings, and lower lifecycle costs across industrial environments.
Get a Quick Quote for a ABB 7BVECP3667T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVECP3667T?
Enquire Now
FAQs
Yes. The VECP3667T uses a 182TC frame with a C-Face drive end flange and offers horizontal mounting options, aligning with standard industrial bases and 3‑phase wiring for straightforward integration.
The motor is 1.5 HP, 3-phase, and rated for 208/230/460 V at 60 Hz, delivering 1170 rpm under nominal load and a service factor of 1.15 for continuous operation.
It carries IE3 Premium Efficiency along with CSA/UL/UR approvals (CSA EEV, CSA US), providing global compliance and simplifying acceptance in multinational facilities and regulated industries.
Lead time is listed as 0 day, and the model is stocked at multiple warehouses (including US and China), enabling fast procurement and project scheduling.
Direct On Line starting, TEFC protection, and footless mounting with horizontal orientation streamline installation. Bearings (6206) and insulation class F support reliability under continuous loads, while stock availability reduces downtime during commissioning and maintenance.
