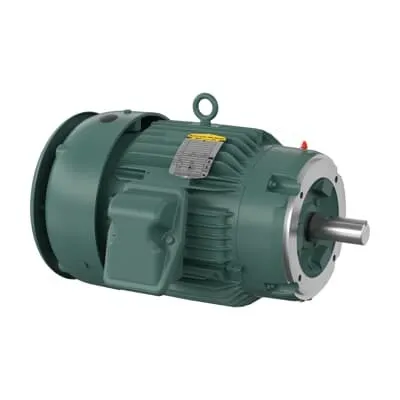

ABB VECP3770T Severe Duty Motor - TEFC 7.5HP IE3
Part Number: 7BVECP3770T
Quick Summary
ABB VECP3770T Severe Duty Motor delivers robust torque for heavy-duty conveyors and processing lines. In harsh industrial settings, downtime and energy waste erode uptime and inflate maintenance budgets. This motor carries critical certifications, including NEMA Premium efficiency, IE3 performance, and CSA EEV recognition, signaling reliability and energy savings across demanding environments. With dual-voltage capability (230 V or 460 V) and a TEFC enclosure, it adapts to both retrofit projects and new installations. The 213TC frame and C-face mounting simplify integration into existing drives, while its 60 Hz operation supports common North American industrial rhythms. For procurement, this motor offers consistent stock, easy sourcing, and long-term cost advantages.
Product Information
Extended Description
7BVECP3770T ABB: Severe Duty Motor 7.50 Hp 230 V (VECP3770T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213TC,0738M,
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6307
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VECP3770T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
07LYK370: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
VECP3770T
Gross Volume
9144.346 in³
Gross Weight
170 lb
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213TC,0738M,TEFC
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VECP3770T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
213TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
81 %
Product Name
Severe Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
170 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B07K370T510G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: Severe-duty construction with a 213TC frame and TEFC enclosure. Business Impact: Enhanced durability reduces maintenance cycles and extends service life in conveyors and pumps. Application: Ideal for mining, cement, and packaging lines where continuous operation matters. Feature: 7.5 HP, 3-phase, 60 Hz operation with 4-pole design. Business Impact: High torque with reliable start-up and smooth speed control reduces process interruptions. Application: Drives fans, mixers, and material handling equipment in heavy industry. Feature: IE3 efficiency and NEMA Premium certifications. Business Impact: Lower energy costs, cooler operation, and improved compliance with energy regulations. Application: Long-run pumps and ventilation systems in process plants. Feature: Direct-on-line starting and TEFC protection. Business Impact: Simplified drive systems, reduced upfront costs, and fewer variable speed drive components. Application: Immediate integration into existing electrical rooms and new builds. Feature: Dual-voltage capability (230/460 V) and C-face horizontal mounting. Business Impact: Flexible installation and easier retrofits across plants with mixed voltage fleets. Application: Food, chemical, and general manufacturing environments seeking plug-and-play replacement motors. These capabilities, combined with a 0-day lead time and stock accessibility, translate to faster project completion and reduced total cost of ownership.
